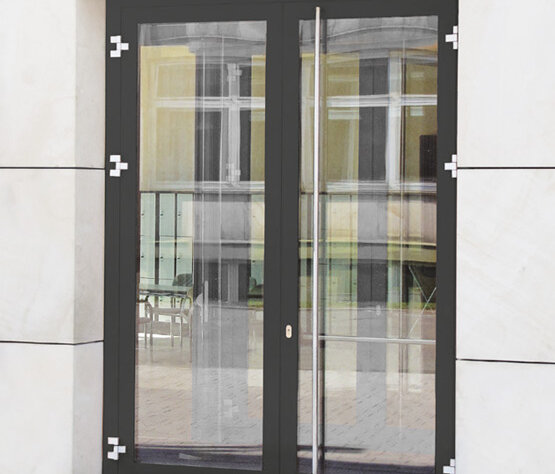

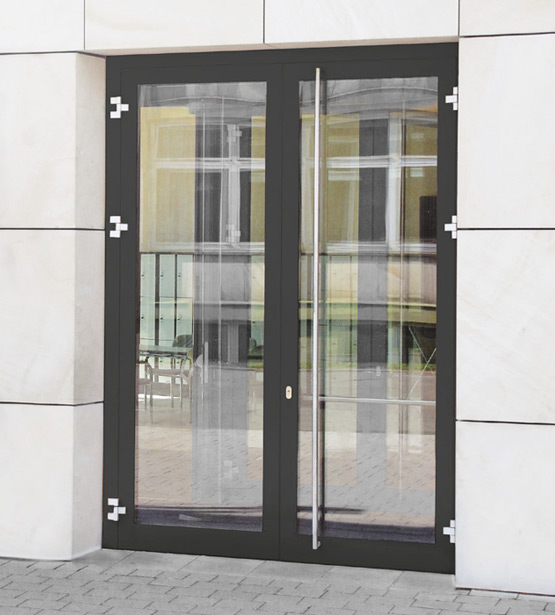

Aluminium exterior doors

Big on energy efficiency

The aluminium exterior door is a stable profile system for highly insulated door systems on side and rear entrance areas in industrial, commercial and administrative buildings. Equally, it also provides cover for ancillary areas and is an excellent complement to the Novoferm door range. This exterior door also has impressively good technical features, excellent Uƒ values and numerous design options.

Your advantages at a glance!

Thermally separated 3-chamber system
Designed in accordance with EN ISO 10077-2 with a heat transfer coefficient of Uƒ = 1.3 -1.9 W/m2K
Sturdy aluminium profiles with a wall thickness of 2 mm
Optional burglar resistance up to RC2
Barrier-free sill variant
Unobtrusive glazing seals
Vast range of colour schemes, surface finishes and fillings
Rounds off the Novoferm door range for one-stop supply

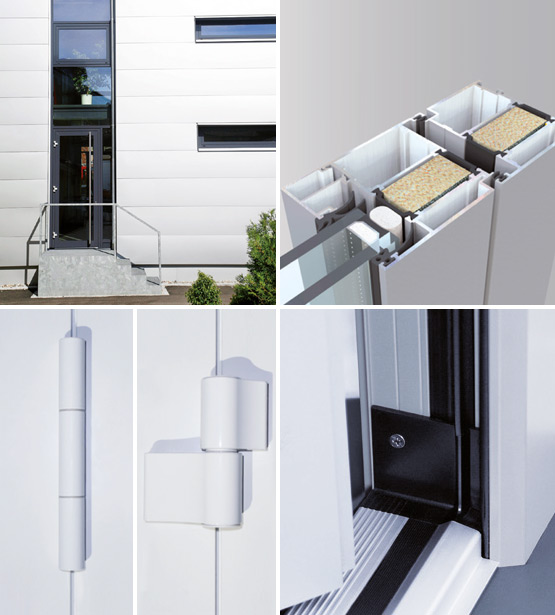

Aluminium exterior doors: the details

Hardware
Suitable for mounting all commercially available hardware. A wide variety of door hinges is available, ranging from a sturdy screw-on hinge to completely concealed door hinges to roller hinges in aluminium or stainless steel.

Design
Stable frame-leaf combination with a wall thickness of 2 mm. Leaf profiles can optionally be equipped with sliding insulation bars to minimize the bimetallic effect.

Door sill
The barrier-free sill variant with an installation height of 19 mm and concealed fastening creates a visually smooth transition from the outside to the inside and can be used in old and new buildings thanks to a special base profile.

Profile dimensions
The profiles or profile dimensions given below are minimum requirements. Reinforced profiles may be used to enhance structural stability.

Profile installation depths:
Panel frame, sash bars, transom 75 mm
Leaf frame (door) 75 mm

Profile visible widths, door:
(Consistent with NovoFire® fire protection system)
Door frame including door leaf 149 mm
Door pedestal 150 mm

Profile dimensions
The profiles or profile dimensions given below are minimum requirements. Reinforced profiles may be used to enhance structural stability.

Profile installation depths:
Panel frame, sash bars, transom 75 mm
Leaf frame (door) 75 mm

Profile visible widths, door:
(Consistent with NovoFire® fire protection system)
Door frame including door leaf 149 mm
Door pedestal 150 mm

Technical features

Joint
permeability: Class 4

Driving rain
up to Class 6A

Glazing
24 - 52 mm

Barrier-free
sill

Burglar resistance
RC2 (WK2)

Uƒ =
1.3 - 1.9 W/(m²K)

Aluminium exterior doors: the engineering

... for aluminium exterior seals

Heat insulated aluminium exterior seals, with large glazed areas

Resistance class		Heat insulated exterior seals
Type		Single leaf door	Double leaf door	Glazing heat insulated
Element design
Slants		–	–	•
Arches		–	–	•
Recesses		–	–	–
Angle		–	–	•
Widening		•	•	•

Sizes
Unfinished dimensions	Width min. – max.	625 - 1450	1500 - 2400	unlimited
Unfinished dimensions	Height min. – max.	1750 - 2505	1750 - 2400	5000 ¹)
Outer frame dimensions	Width min. – max.	605 - 1425	1470 - 2395	unlimited
Outer frame dimensions	Height min. – max.	1740 - 2495	1740 - 2385	5000 ¹)
Clear passage dimensions when opened 180°	Width min. – max.	461 - 1281	1322 - 2247	–
Clear passage dimensions when opened 180°	Height min. – max.	166 - 2417	1668 - 2313	–

Door panel
Installation depth		75	75	75
View		149	149	74
Pedestal height		152	152	176
Transom profile		76 - 96	76 - 96	76 - 96
Glued sash bar		20 - 140	20 - 140	20 - 140

Walls
Masonry		•	•	•
Concrete		•	•	•
Foam mortar or precision blocks		•	•	•
Foam mortar slabs		•	•	•
Ständerwände		•	•	•
bekleidetes Stahl-Bauteil		•	•	•
Wood structure cladded		•	•	•
Door / glazing combination		•	•	•
Z-frames		–	–	–

Fillers
Glazing thickness 4)		24 - 52 mm
Panel		•	•	•
Glass / panelling		•	•	•
Glass	Wet glazing	–	–	–
Glass	Dry glazing	•	•	•

Design variants
with fanlight and side part		•	•	•
with fanlight		•	•	•
with side part		•	•	•
Joint permeability class		4	4	4
Resistance to driving rain class		Up to 6 A	Up to 6 A	–
Acoustic insulation		40 dB	40 dB	40 dB
Burglar resistance		WK 2	WK 2	–
Heat transfer Uf		1,3 - 1,9 W/m²K	1,3 - 1,9 W/m²K	1,3 - 1,9 W/m²K

CE mark in accordance with EN 14351-1		•	•	•
Tested to		DIN 4102 and EN 1634

• possible – not possible
¹) As stipulated for structural stability
²) No façade, no side hung/bottom hung windows
³) Further sizes possible
₄) All commercially available panes are possible

All sizes in mm, RAM = Outer frame dimensions

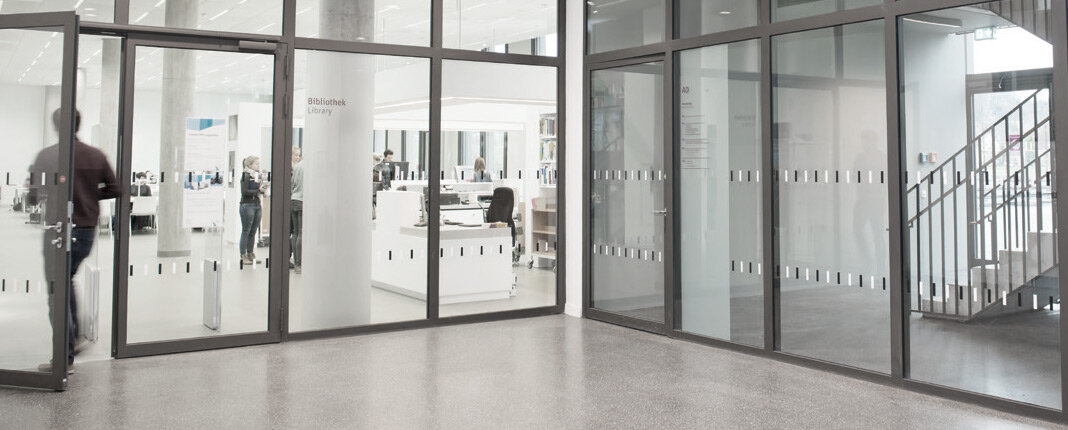

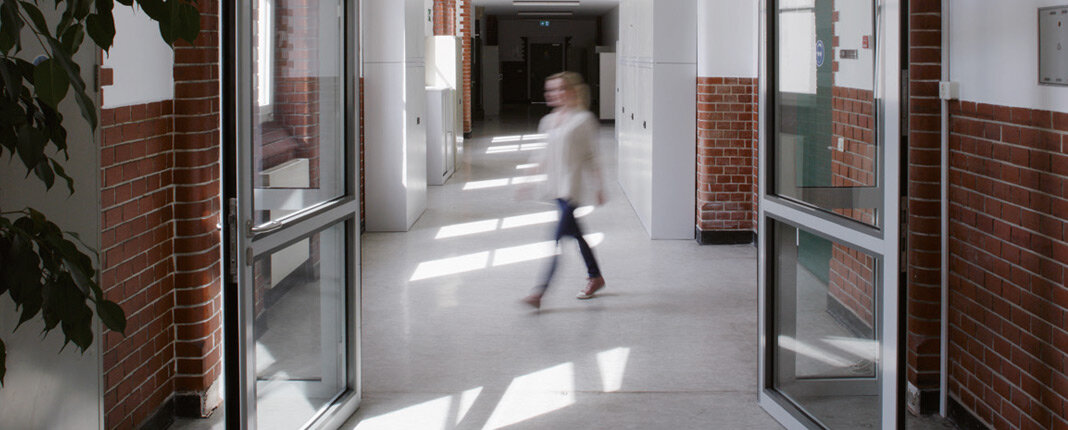

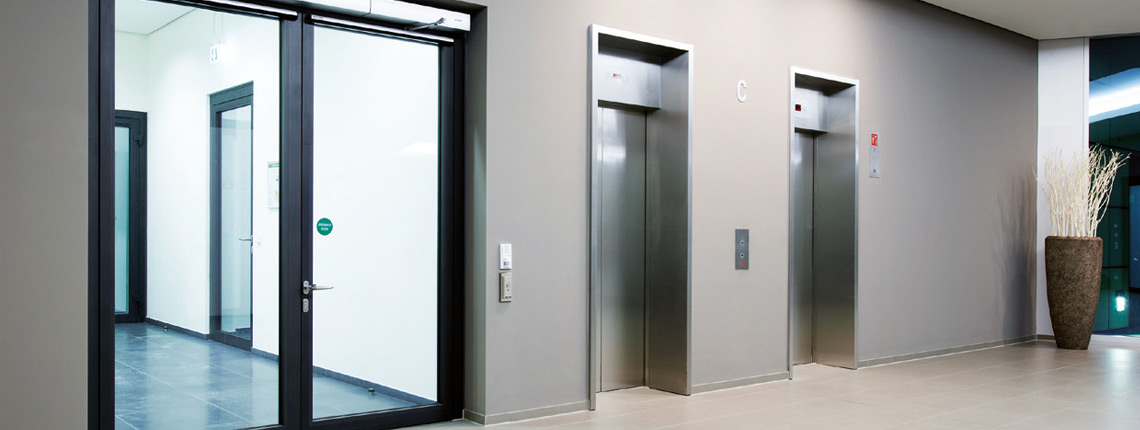

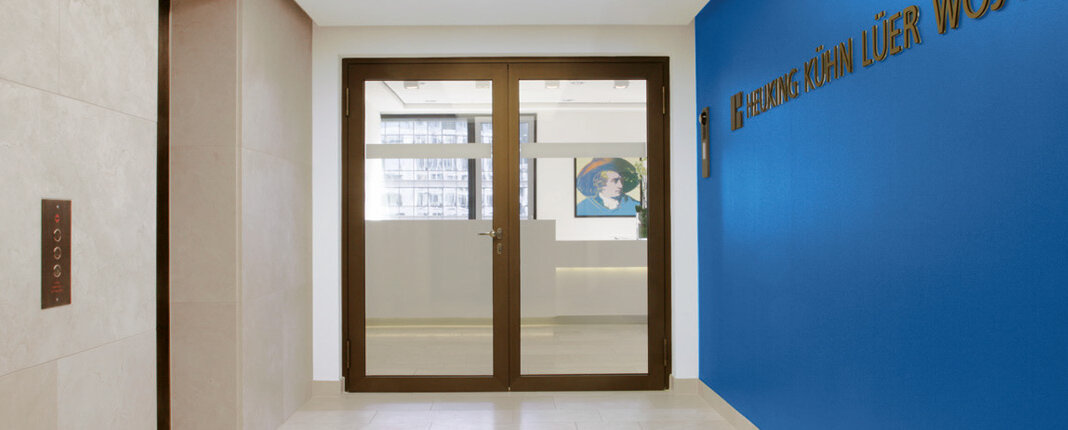

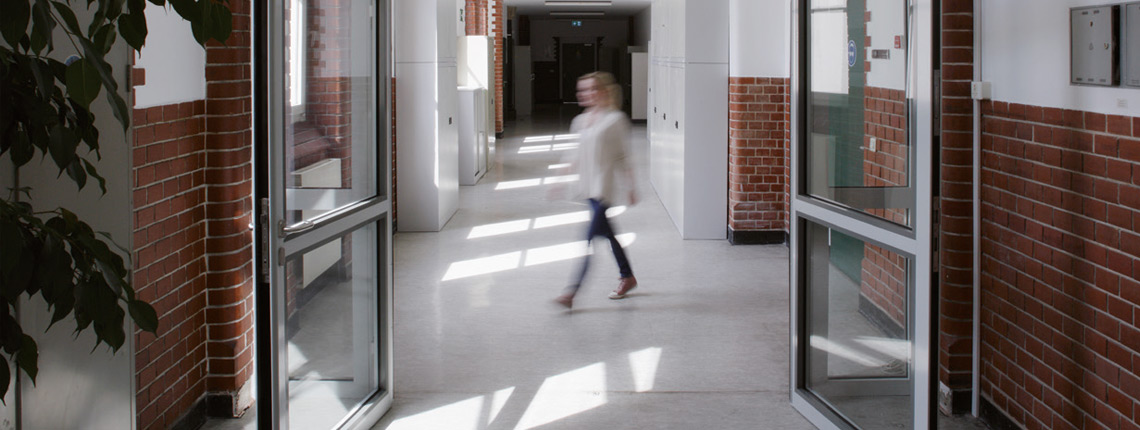

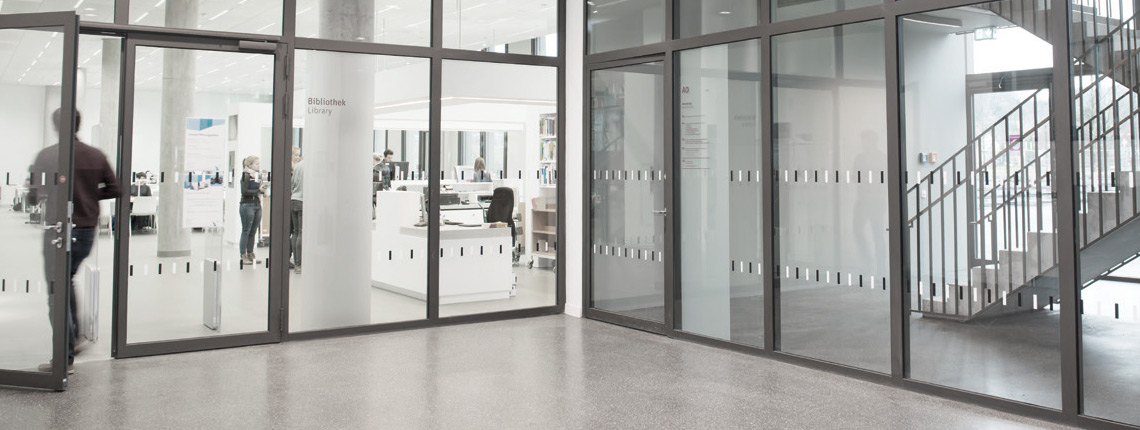

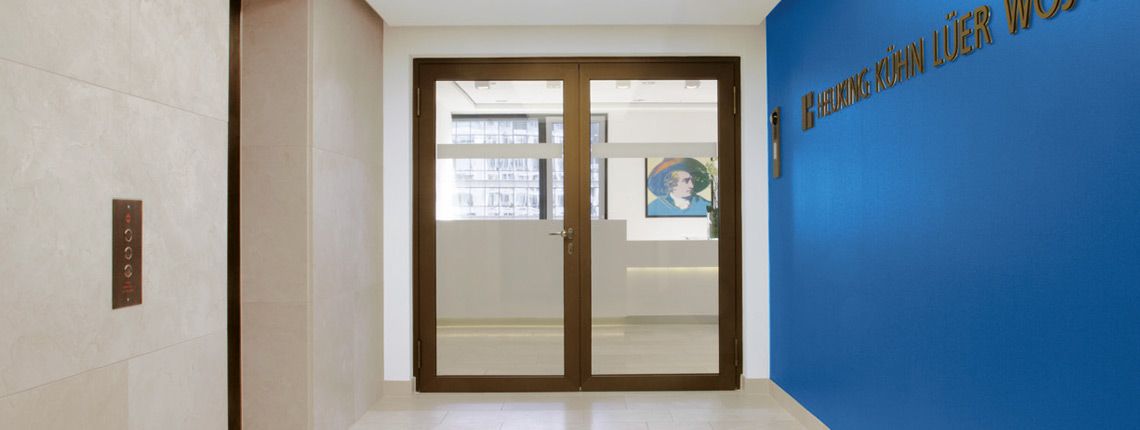

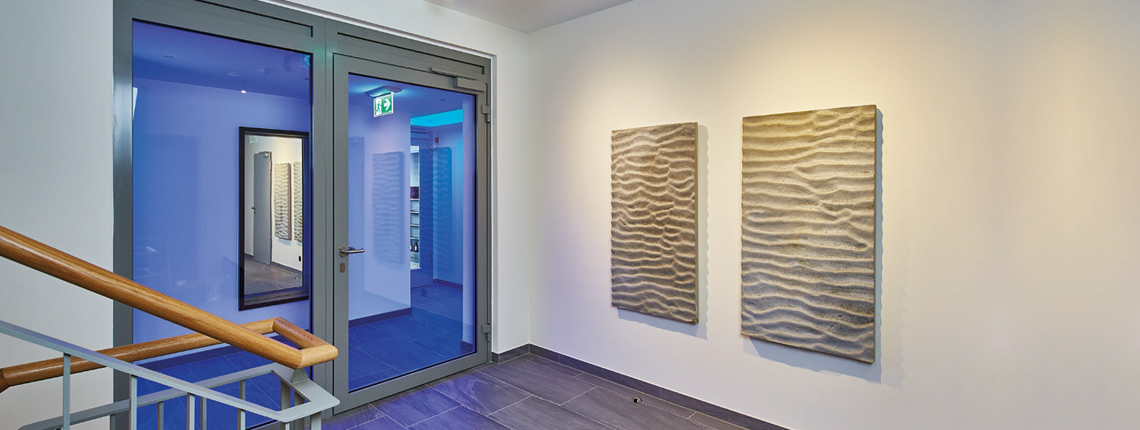

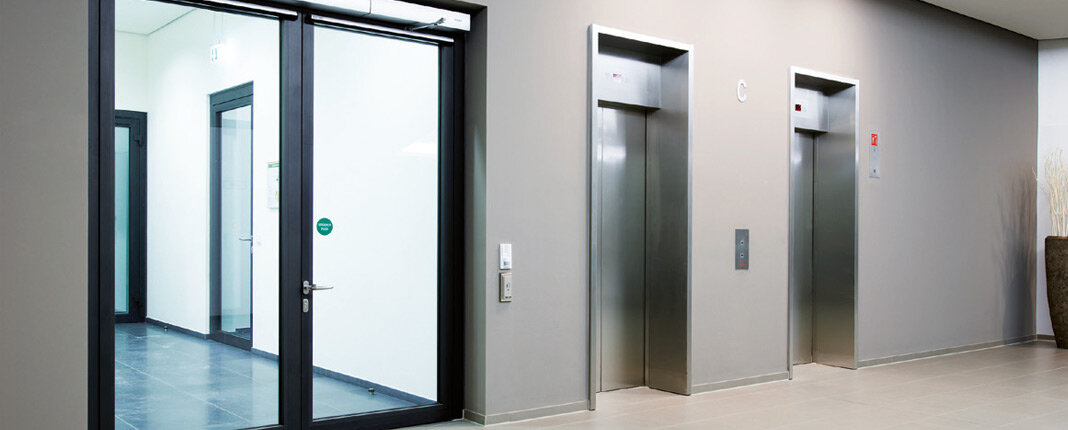

Tubular frame doors with special features

... in attractive variants

Tested for smoke- and fireproofing as the basis, but enhanced with special features. This is what makes NovoFire® a series that offers a huge range of options. Wood decor or wood feel, tinted glass in a choice of colours - individual configurations enable the system to blend in with any architectural design.

Your advantages at a glance!

Single and double leaf door units possible
Available in fire classes RS, T30 (EI2 30) and T90 (EI2 90), tested to EN 1634-1 and DIN 4102
In combination with an automatically lowerable floor seal, these doors are tested for smoke protection in accordance with EN 1634-3 and DIN 18095
Screw-on and roller hinges for RS, T30 (EI2 30) and T90 (EI2 90), as well
All models have the same visible width of 150 mm.
Units are delivered ready for installation

Hardware
Mortice lock, pre-assembled for profile cylinder, handle or knob-lever sets with oval rosette plates in aluminium, stainless steel or plastic. The inactive leaf is fixed by the upper latch on the active leaf. A panic function that complies with EN 179 or EN 1125 is also possible as an alternative.

Hinges
Only two 3-part roller hinges on each leaf up to a door height of 2.50 m, two-dimensionally adjustable; we recommend the use of three hinges on doors with swing door operator. Further hinge options, such as screw-on hinges NovoFire® tubular frame doors offer planners and property owners huge scope for cleverly combining shapes, surfaces and materials. Wood decor, for example, has a textured surface finish that is virtually indistinguishable from real wood. Further metallic decors and tinted glazing offer huge scope for individual designs ranging from cool tech to naturally elegant.

Attractive surface finishes

Anodized aluminium, stainless steel finish or top powder coating
(RAL Classic of choice)
Steel with primer powder coating in RAL 9002 (grey white) or
optionally top coated (RAL Classic of choice)
Decors, e.g. wood, that look and feel like natural materials

Assembly

Installing a tubular frame door

Click on the link on the left to watch a video explaining how to install tubular frame doors. This video clearly describes the individual assembly steps in detail, using a NovoFire(R) Alu T30 (EI2 30) as an example.
