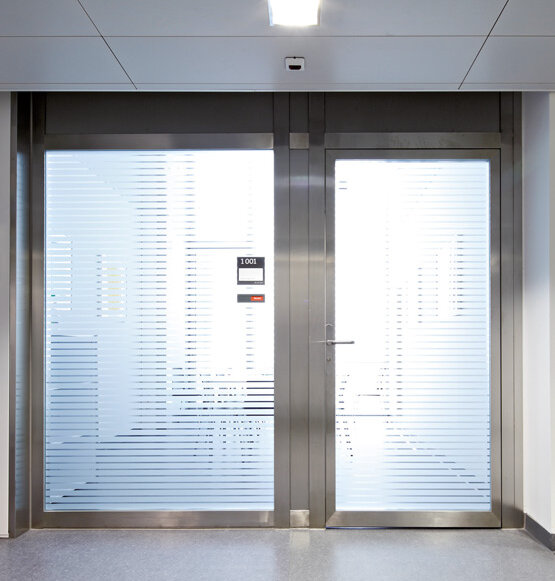

1-flügelige Feuerschutztür mit Festelement

Tubular frame doors

Enhanced possibilities, fewer restrictions

Fire protection requirements are best met when the requisite structural elements also feature a certain design sophistication. We know that architects and property owners want a broadly diversified programme, especially in construction projects, that features individual elements with matching designs.

Interior design highlights made of glass and metal

The range of profile frames / tubular frame doors shown here constitute a universal system that we have created to meet exactly these requirements in respect of doors and glazing. Here are the most important facts: Partitioning wall elements with sash bars are available in whatever width you require. No height restrictions apply for smokeproof wall elements, either. For fireproof wall units, the height is limited by building laws to a maximum 3500, 4000 or 5000 mm - depending on the type. In line with contemporary trends in architecture, our range now features a new surface: "Stainless steel finish".

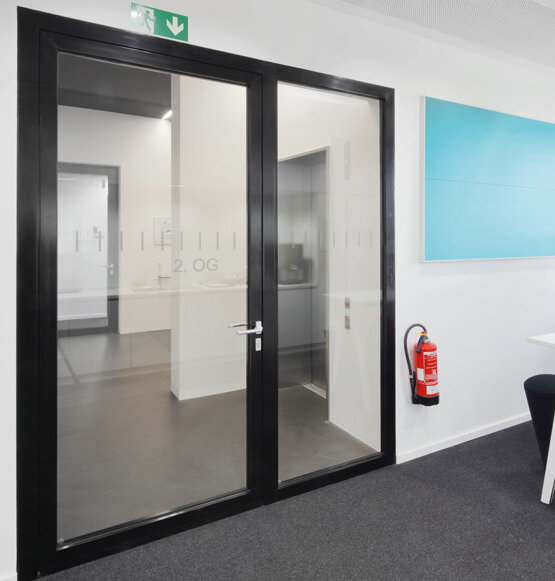

Profile frames / tubular frame doors made by Novoferm create interior design highlights in glass and metal. In a choice of aluminium or steel, and combined with spacious glazing elements, they create the transparent structures that are so sought after, especially in building interiors. They also add a very special touch to contemporary architecture. Made by Novoferm. See for yourself!

Why opt for NovoFire® aluminium systems?

NovoFire is a profile frame structure that creates interior design highlights made of glass and aluminium. Combined with spacious glazing elements, they create the transparent structures that are so sought after in building interiors. The system is based on sturdy hollow profiles requiring little installation depth, while the 4 mm profile walls make them particularly stable and thus enable large sizes and clear passage dimensions.

The uniform appearance of the profiles in RS, T30 and T90 versions enables modular use of the system, which enormously simplifies planning and execution.

The system is tested, not just to German standards, but also to European fire and smoke protection standards and complies with the requirements for EI30 and EI90 classification.

Optional features to suit the various requirements for a building are available to create multifunctional doors.

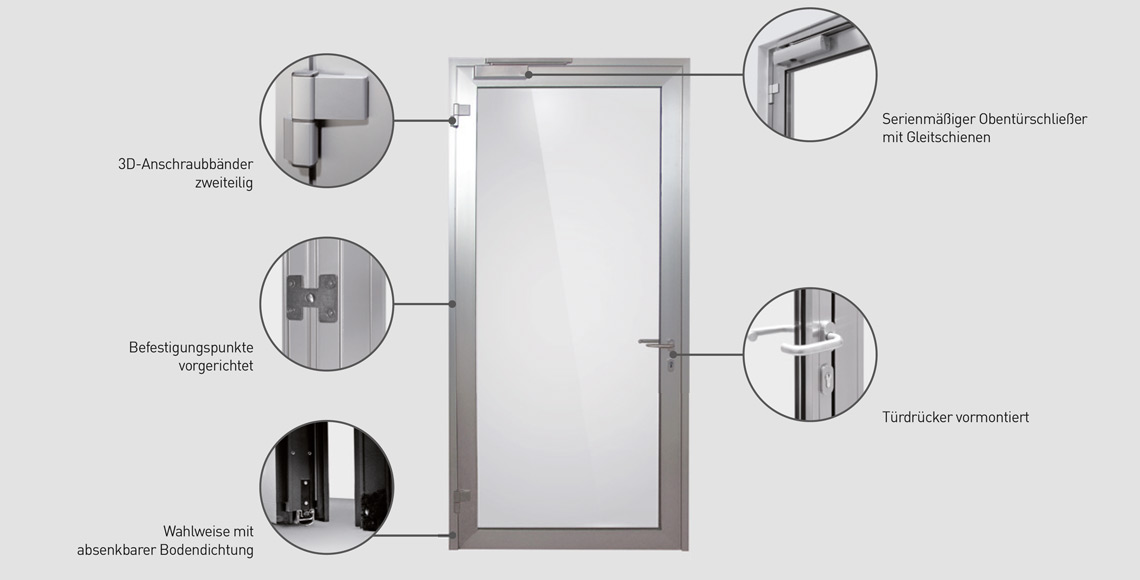

Features

Compactly engineered hollow profile with 4 mm walls and just one fire resistant core anchored in the middle.
Profile appearance is the same for all RS, T30 and T90 systems
Flush doors on RS, T30 and T90 models for sophisticated aesthetic design
The outer chambers are free and can be used to fasten add-on parts
Three sides of the door rebate on fire resistant doors are clad with fireproof strips coated with smooth, black PVC, which prevents soiling.
All seals are made of EPDM and all glass elements are dry glazed
The same hardware is used on all systems, which enormously simplifies planning
Top quality surface finishes with powder coating in any colour; optional wood decors
Glazing in the centre; optional panel infills
Three-dimensionally adjustable screw-on hinges; just 2 on doors up to a height of 2.50 m
Two-dimensionally adjustable roller hinges; just 2 on doors up to a height of 2.50 m
Optional panic hardware as per EN 179 and EN 1125
Smoke leakage characteristics as per DIN 18 095 and EN 1634-3
Burglar resistance: Tested to ENV 1627 in classes RC1, RC2 and RC3
Tested to German and European standard EN 1634

Choose your tubular frame door / your system

Aluminium systems for doors & walls

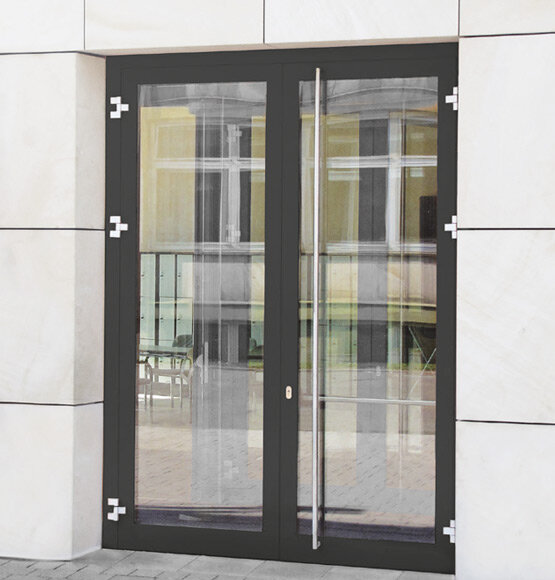

Aluminium exterior doors

Steel systems for doors and walls
