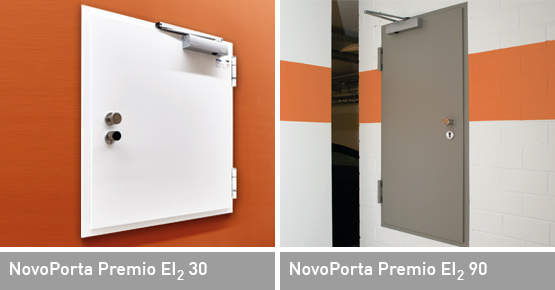

Novoferm’s NovoPorta Premio wall flaps with high quality thick rebate are available in fire resistant classes T30 (EI₂ 30) and T90 (EI₂ 90) for indoor use.

Your advantages at a glance!

Single leaf fire resistant steel wall flaps for indoor use
Fire retardant / fireproof – tested to EN 1634-1 and building code approved as per DIN 4102
Flap with 64 mm thick rebate on four sides, sheet thickness 1.0 mm (1.5 mm optionally available)
Flap and frame galvanized and primed (powder coated), similar to RAL 9016

NovoPorta Premio T30 / T90 wall flaps: the details

Hardware:
Standard equipped with one 3-part hinge plate with ball bearing and one 3-part spring hinge (T90: spring hinge up to max. flap size of approx. 1 m² due to size and weight constraints; larger sizes are fitted with hinge plates and overhead door closers). Hinges standard primed white, similar to RAL 9016; optionally available in stainless steel, as adjustable 3-D hinges in steel or stainless steel, or as customized slimline 3-D stainless steel hinges (upper door closer always necessary for customized hinges).
One securing pin up to BRM height 1750 mm. PC mortice lock with drawback latch, with black rounded handle set (turn lock mounted). On-site profile cylinder (85 mm long, 35/50 mm).
Flaps standard equipped with internal reinforcement for overhead door closer on the hinge side.

Frames:
Standard corner frame with four-sided sealing profile, 2.0 mm thick, frame facing width 50 mm, optionally available: wrap-around door frame, 2140B two-part wrap-around frame profile, counter and block frame for butted wall connection (T30: also block frame for installation in front of the wall).

Sills:
Standard B1 with all-round frame. Optionally available with B3 sill.

Surface finishes:
Flap leaf and frame galvanized and primed (powder coated), similar to RAL 9016. Flap leaf and frame optionally available with Novoferm design finish.

NovoPorta Premio T30 / T90 wall flaps

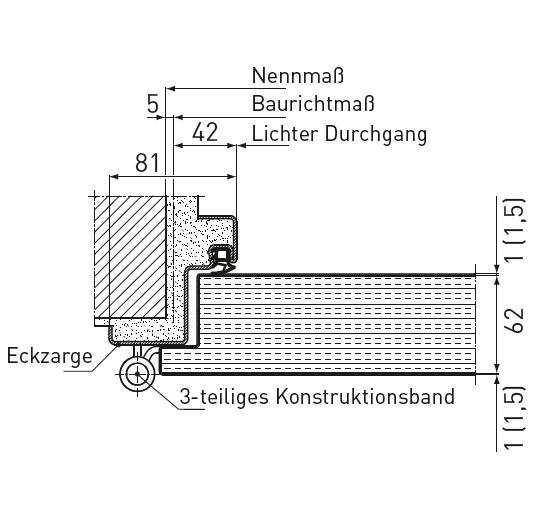

Horizontal section, 1 leaf

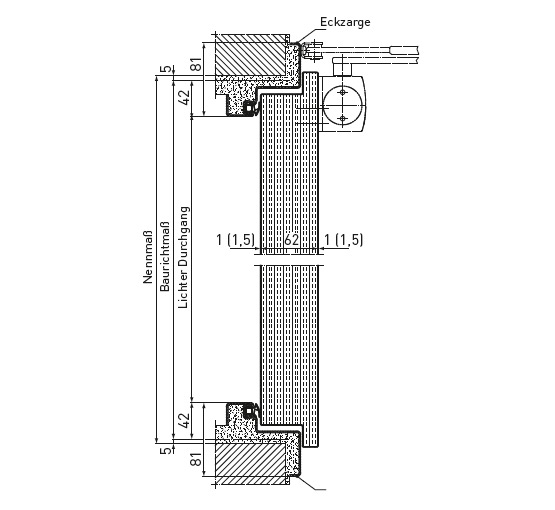

Vertical section

Optionally enhanced with:

Fire resistant glazing (overhead door closer always necessary)
Smoke protection as per DIN 18095 / EN 1634-3 (overhead door closer necessary on flaps > W x H 984 x 984 mm)
Soundproof – tested to EN ISO 140-3, assessed as per EN ISO 717-1 (laboratory values for full leaf: T30 40 dB RW,P, T90 39 dB RW,P)
Burglar resistant RC2 – both sides tested to EN 1627 – full leaf

Technology

Technical data: NovoPorta Premio T30 (EI2 30) / T90 (EI2 90) wall flaps

Resistance class / Type Designation		NovoPorta Premio T30-1 Wall flap	NovoPorta Premio T90-1 Wall flap
Approved dimensions
Coordinating size (BRM)	Width min. – max.	500 – 1000	500 – 1000
	Height min. – max.	700 – 1750	700 – 1750
with top panel	Max. height	–	–
of which: door	Max. height	–	–
Smokeproof door with top panel	Max. BRM	–	–

Door panel
Leaf thickness, approx.		64	64
Sheet thickness, approx.		1.0 (optionally 1.5)	1.0 (optionally 1.5)
Type of opening	as per DIN	Left or right	Left or right

Walls
Masonry		≥ 115	≥ 175
Concrete		≥ 100	≥ 140
Foam mortar block / Precision blocks		≥ 150	≥ 175
Reinforced foam mortar wall boards		≥ 150	≥ 175
F60-A (T30 only) or F90-A walls made of fire resistant gypsum plasterboard (as per DIN 4102, Part 4, Table 48)		≥ 100	≥ 100
F60-B and F90-B walls made of fire resistant gypsum plasterboard (as per DIN 4102, Part 4, Table 49)		≥ 130	–
Other approved installation walls, F60-A (T30 only) or F90-A as per general building code test certificate, on request		•	•
Cladded steel supports/beams, min. F60-A (T30 only) or F90-A, as per DIN 4102-4		•	•

Versions
Fire retardant/fireproof – tested to EN 1634–1 and approved as per DIN 4102		•	•
Fire resistant glazing ¹)		•	•
Optional smoke protection		•	•
Optional soundproofing (with 4-sided B1 frame, without glass, laboratory value as per EN ISO 717-1)		approx. 40 dB Rw,P	approx. 39 dB Rw,P
Optional burglar resistance as per EN 1627 (full panel; tested on both sides)		RC2	RC2
Optional Novoferm design finish		•	•

F30/F90 glazing
Rectangular standard-compliant glazing with visibly bolted glass retaining strips, standard galvanized and primed with powder coating (RAL 9016), with optional additional cover profiles (without visible fastening) in stainless steel. T30: Minimum frieze widths on 3 sides ≥ 150 mm, on the lock side ≥ 180 mm. T90: Minimum frieze width on 3 sides ≥ 200 mm, pedestal height ≥ 300 mm.		•	•
Round standard-compliant glazing Glass retaining strip design and T30/T90 minimum frieze widths / pedestal height as for rectangular standard-compliant glazing.		•	•
Special glazing, optional, from 150 x 150 mm to 586 x 1366 mm (T30) or 460 x 1160 mm (T90). Glass retaining strip design and T30/T90 minimum frieze widths / pedestal height as for rectangular standard-compliant glazing.		•	•

• possible – not possible

All glazing dimensions refer to the clear look-through per glass.

¹) Glass for indoor use only (protect against UV light and direct halogen radiation). Glass can only be used within a temperature range of –20 to +45°C.

All sizes in mm. BRM = coordinating size RAM = outer frame dimensions LD = clear passage dimensions
