MZ-1 multipurpose doors (thin rebate)

As the name suggests: The multipurpose door

MZ-1 multipurpose doors are ready for indoor and outdoor installation and offer one means of ensuring acoustic and heat insulation. Added to which, the sturdy steel door with high quality mineral wool insulation is not just galvanized, it is also primed in traffic white, similar to RAL 9016.

Your advantages at a glance!

For use as doors leading to a cellar, garage, utility room or outside
Door leaf and frame galvanized and primed, traffic white, RAL 9016
Usable left/right
Rubber seal on 4 sides
PC mortice lock with drawback latch incl. single tumbler lock insert and key
Black rounded handle with short plate
Soundproof SV approx. 37 dB
Heat insulation UD = 1.6 W/m²K
Door panel with high quality mineral wool inlay
Optional aluminium rain strip at extra cost for use as a door to the outside
Optional glazing on request
Optional double leaf models available

Our marks for your safety

Technology

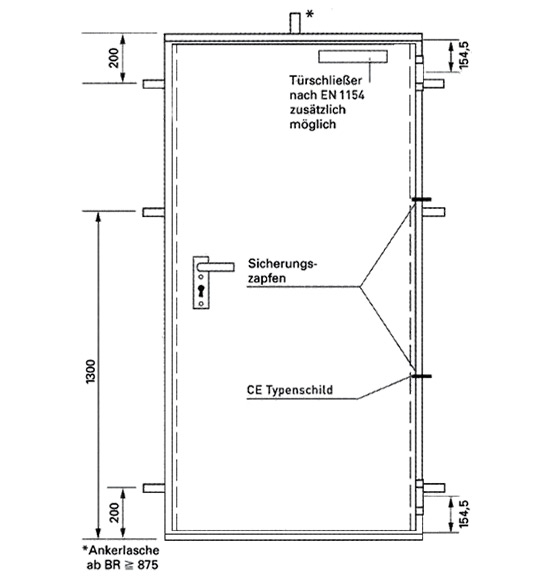

View, anchor dimensions and installation

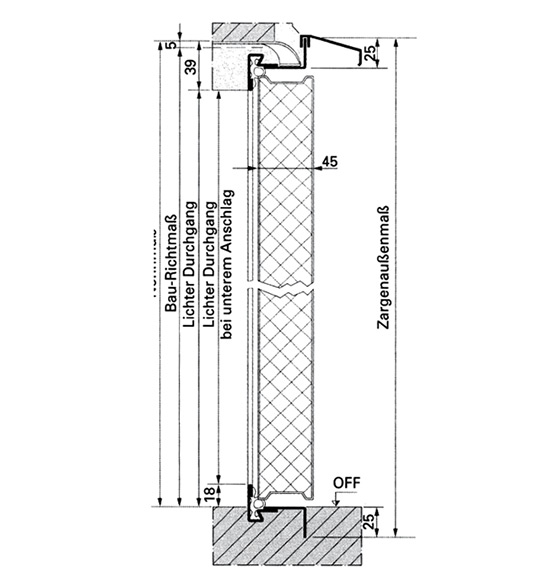

MZ-1 multipurpose door

Aluminium rain strip, clip on, optional at extra cost

MZ-1 multipurpose door

Frames, frame fastening materials and base stopper

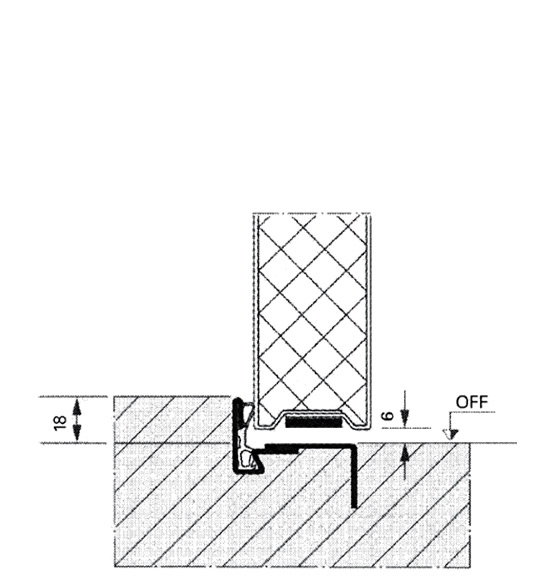

MZ-1 with base stopper
Break the angle profile off if no base stopper is required.

Corner frame with combined wall plug anchor

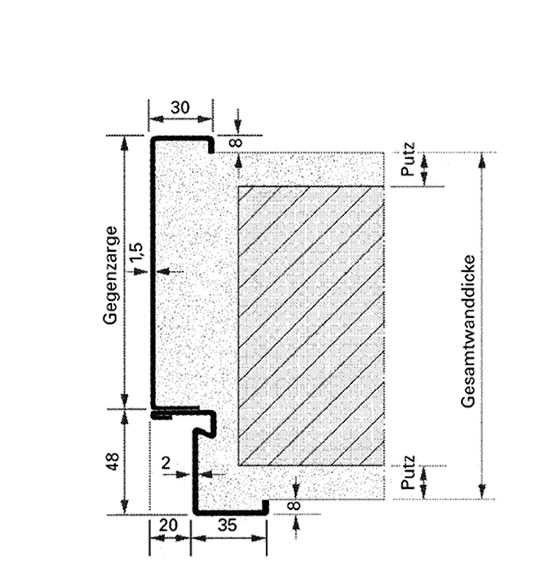

Optional counter frame can be spot welded or screwed to the corner frame on site.

Order / Coordinating sizes

Type	Coordinating sizes (BR) (Order sizes) mm	Unfinished dimensions / Nominal sizes mm	Clear passage dimensions mm	Outer frame dimensions* mm
Multipurpose door MZ-1	750 x 1750	760 x 1755	682 x 1716	792 x 1784
	750 x 1875	760 x 1880	682 x 1841	792 x 1909
	750 x 2000	760 x 2005	682 x 1966	792 x 2034
	800 x 1800	810 x 1805	732 x 1766	842 x 1834
	800 x 1875	810 x 1880	732 x 1841	842 x 1909
	800 x 2000	810 x 2005	732 x 1966	842 X 2034
	875 x 1750	885 x 1755	807 x 1716	917 x 1784
	875 x 1800	885 x 1805	807 x 1766	917 x 1834
	875 x 1875	885 x 1880	807 x 1841	917 x 1909
	875 x 2000	885 x 2005	807 x 1966	917 x 2034
	875 x 2125	885 x 2130	807 x 2091	917 x 2159
	1000 x 1875	1010 x 1880	932 x 1841	1042 x 1909
	1000 x 2000	1010 x 2005	932 x 1966	1042 x 2034
	1000 x 2125	1010 x 2130	932 x 2091	1042 x 2159
	1125 x 2125	1135 x 2130	1057 x 2091	1167 x 2159
	1250 x 2000	1260 x 2005	1182 x 1966	1292 x 2034
	1250 x 2125	1260 x 2130	1182 x 2091	1292 x 2159

	* Including floor recess 25 mm. Special sizes: BR from 625 x 1750 mm to 1250 x 2125 mm.

Art	Coordinating sizes (BR) (Order sizes) mm	Unfinished dimensions / Nominal sizes mm	Clear passage dimensions mm	Outer frame dimensions* mm
Multipurpose door MZ-1	750 x 1750	760 x 1755	682 x 1716	792 x 1784
	750 x 1875	760 x 1880	682 x 1841	792 x 1909
	750 x 2000	760 x 2005	682 x 1966	792 x 2034
	800 x 1800	810 x 1805	732 x 1766	842 x 1834
	800 x 1875	810 x 1880	732 x 1841	842 x 1909
	800 x 2000	810 x 2005	732 x 1966	842 X 2034
	875 x 1750	885 x 1755	807 x 1716	917 x 1784
	875 x 1800	885 x 1805	807 x 1766	917 x 1834
	875 x 1875	885 x 1880	807 x 1841	917 x 1909
	875 x 2000	885 x 2005	807 x 1966	917 x 2034
	875 x 2125	885 x 2130	807 x 2091	917 x 2159
	1000 x 1875	1010 x 1880	932 x 1841	1042 x 1909
	1000 x 2000	1010 x 2005	932 x 1966	1042 x 2034
	1000 x 2125	1010 x 2130	932 x 2091	1042 x 2159
	1125 x 2125	1135 x 2130	1057 x 2091	1167 x 2159
	1250 x 2000	1260 x 2005	1182 x 1966	1292 x 2034
	1250 x 2125	1260 x 2130	1182 x 2091	1292 x 2159

	* Including floor recess 25 mm. Special sizes: BR from 625 x 1750 mm to 1250 x 2125 mm.
