Premio Vario fire resistant doors

NovoPorta Premio Vario T30 (EI2 30): the details

Hardware:
All Premio Vario doors are standard equipped with three-dimensionally (3-D) adjustable hinges. Two 3-D hinges per leaf. Hinges standard primed white, similar to RAL 9016; optionally available in stainless steel. Single leaf doors: one hinge plate and one spring hinge. Double door units: two hinge plates per leaf. Two securing pins per leaf.
PC mortice lock with drawback latch, with black rounded handle set (turn-lock mounted).
Profile cylinder (on site, 50 mm long).
1 leaf doors standard equipped with internal reinforcement for door closer on the hinge side.

Additional features on double door units:
Two Dorma TS 89 F or Geze TS 4000 F door closers and one door coordinator. Flush centre rebate with centre rebate seal. Inactive leaf with upward locking rebate retracting bolt.

Frames:
Standard: Corner frame with three-sided sealing profile, 2.0 mm thick, frame facing width 50 mm, optionally available: wrap-around door frame, 2140B two-part wrap-around frame profile, counter frame and block frames for butted wall connection.

Sills:
Standard A floor level, B1, B2, B3 optionally available with all-round frame, or C2 with bottom stop, or RS1 sealing sills with lowerable floor seal, or RS2 hump sill.

Surface finishes:
Door leaf and frame galvanized and primed (powder coated) similar to RAL 9016. Door panels optionally in preferred Super Colors, RAL of choice (powder coated) or wood decors (laminate coating).

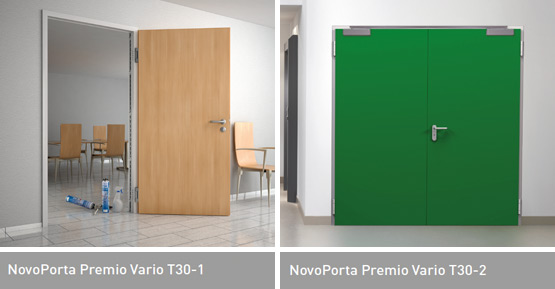

NovoPorta Premio Vario T30-1

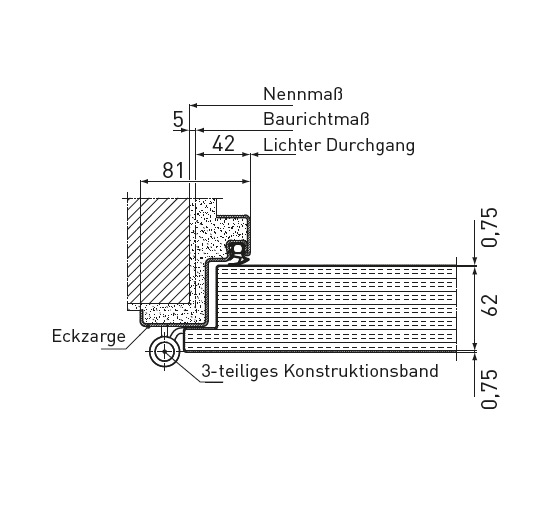

Horizontal section

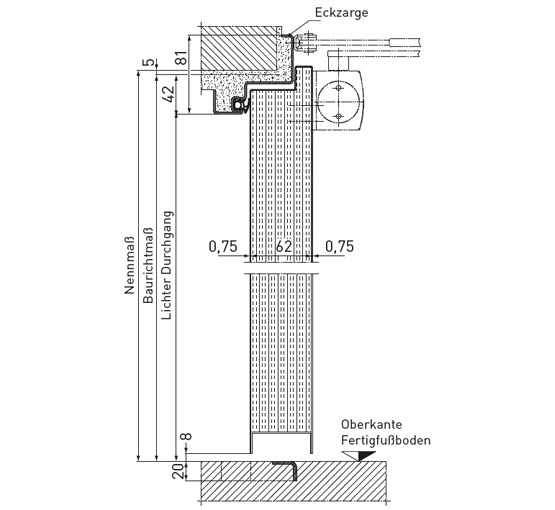

Vertical section

NovoPorta Premio Vario T30-2

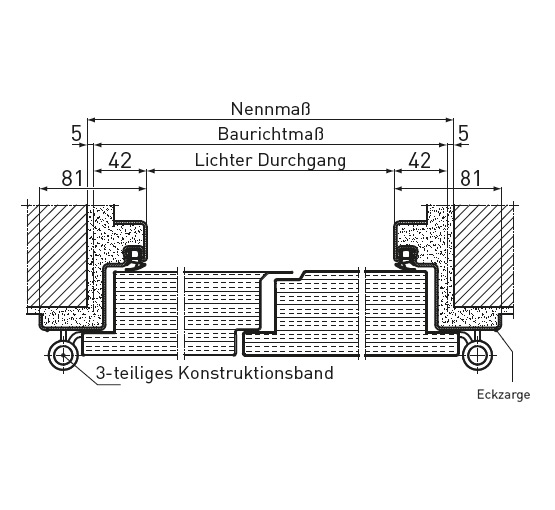

Horizontal section, 2 leaf

Vertical section

Optionally enhanced with:

Fire resistant glazing (overhead door closer always necessary)
Smoke protection as per DIN 18095 or EN 1634-3 with lowerable floor seal (RS1) or acoustic threshold seal (RS2) and overhead door closer
Soundproof – tested to EN ISO 140-3, assessed as per EN ISO 717-1 (laboratory value: 39 dB Rw,p for full leaf and RS1 sill or 42 dB Rw,p for full leaf and C2 sill) – for single-leaf units only

... Standard models

Standard

Door panel: 64 mm thick, thick rebate on three sides, sheet metal thickness. standard 0.75 mm
Frame: 2.0 mm thick, seal on three sides, galvanized and primed (power coated), similar to RAL 9016, traffic white
Lock and hardware: PC mortice lock with drawback latch with black rounded handle set
Hinges: 3-D hinges, primed, similar to RAL 9016
Surface finish (door panel): Galvanized and primed (powder coated), similar to RAL 9016, traffic white

Traffic white
similar to RAL 9016

... Decor models

Decor

Same features as standard models

but with:

Hinges: 3-D hinges, galvanized
Surface finish (door panel): Galvanized and laminated with natural-looking wood decor (note: only available for indoor use)
Available for sizes:
- 1 leaf max. coordinating size: 1000 x 2125 mm
- 2 leaf max. coordinating size: 2000 x 2125 mm

Walnut

Pear

Cherry

Maple

Light oak

White oak

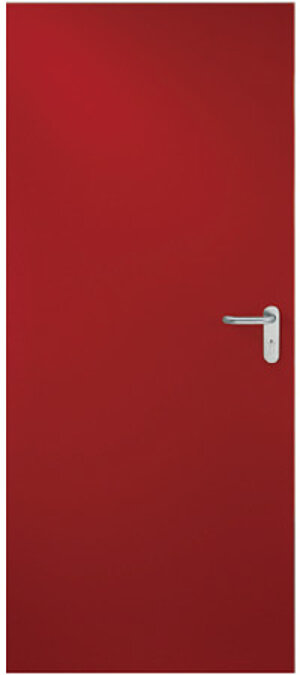

... Color models

Color

Same features as standard models
Colour options: Preferred Super Colors

but with:

Hinges: 3-D hinges, galvanized and painted the same colour as the door panel
Door panel surface finish: Galvanized and primed with environmentally compatible, textured powder coating

Super Color steel blue
similar to RAL 5011

Super Color fir green
similar to RAL 6009

Super Color light grey
similar to RAL 7035

Super Color window grey
similar to RAL 7040

Super Color anthracite grey
similar to RAL 7016

Super Color walnut
similar to RAL 8011

Super Color sepia brown
similar to RAL 8014

Super Color platinum white
similar to RAL 9002

Super Color carmine red
similar to RAL 3002

Super Color olive
similar to RAL 6003

Super Color yellow grey
similar to RAL 7034

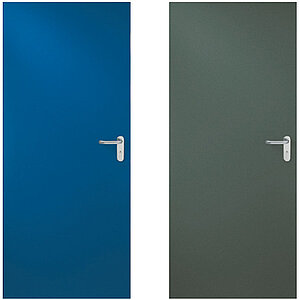

... Specially primed models

Special base coat

Same features as standard models
Colour options: RAL, DB, metallic (except luminous and pearl effect) colours on request

but with:

Hinges: 3-D hinges, galvanized and painted the same colour as the door panel
Door panel surface finish: Galvanized and primed with environmentally compatible powder coating

DB 701

DB 703

RAL colour fans

Glazing and available glass retaining strips

Glazing

Standard glazing

NovoPorta Premio Vario T30-1 and T30-2

NovoPorta Premio Vario MZ-1 and MZ-2

Customized glazing

NovoPorta Premio Vario T30-1 and T30-2

NovoPorta Premio Vario MZ-1 and MZ-2

Available glass retaining strips

NovoPorta Premio Vario T30-1 and T30-2

Available types of glass: F30 transparent glazing for indoor use

Glass for indoor use only (protect against UV light and direct halogen radiation). Glass can only be used within a temperature range of -20 to +45 °C

Steel glazing profiles
For rectangular standard-compliant and special glazing

Glazing profiles with additional stainless steel cover profiles
For rectangular standard-compliant and special glazing

NovoPorta Premio Vario MZ-1 and MZ-2
Insulation glazing
Available types of glass:

24 mm insulating glass, transparent float glass
24 mm VSG/VSG (laminated) insulating glass
24 mm VSG/VSG (laminated) insulating glass with matt foil
24 mm insulating glass, ornamental float glass, white/Mastercarré
24 mm insulating glass, ornamental float glass, white/Masterligne
24 mm ESG/ESG (tempered) insulating glass
Glazing fixtures for on-site 24 mm insulating glass

With glazing, the secured glass strip is standard attached on the hinge side (opposite hinge side is also possible on request).

Other special glass on request, glazing thickness: 24 mm.

Steel glazing profiles
For rectangular standard-compliant and special glazing

Glazing profiles with additional stainless steel cover profiles
For rectangular standard-compliant and special glazing

The perfect solution for drywall construction

NovoPorta Premio Vario T30-1 and T30-2 with easily backfillable 2140B frame profile.

F60-A and F90-A lightweight partition walls and F60-B and F90-B walls have proven their capacity as indoor fire protection solutions that are functional, quick, clean and flexible to install.

The NovoPorta Premio Vario T30 door system specifically for installation walls allows the right doors and frames to be installed just as quickly, easily and cleanly. It comprises the attractive NovoPorta Premio Vario T30 steel door with its host of high quality features and the 2140B two-part frame profile.

One key advantage is that the frames are approved for backfilling with Novoferm fire protection foam and loose mineral wool*, which only have to backfilled in the rebate area of the corner frame while the counter frame can remain empty, thus saving time.

The requisite mineral wool is usually already available on site. The entire system has been tested to EN 1634 and is building code approved as per DIN 4102.

A 3-D hinge is standard and assures quick mounting and adjustment. T30 and T30/smokeproof are available in many standard sizes and throat openings from stock. A broad choice of colours and quality decors offers scope for individual design.

*Melting point > 1,000 °C, building material class A1, DIN 4102-1 / 4102-4, minimum density 40 kg/m³.

Flexibility when backfilling frames in drywall construction – inexpensive, clean and fast!

Backfilled with fire protection foam
Only use Novoferm 1C fire protection pistol foam! (No other foams that are available in the marketplace may be used!)

Backfilled with mineral wool
Mineral fibre insulation,
Bulk density ≥ 40 kg/m³,
Melting point > 1,000 °C,
Building material class A1 / Euroklasse A1

Backfilled with gypsum plasterboard strips
Simply cut existing gypsum plasterboards into right-sized strips and insert them into the frame before mounting it in the wall.

Overview of approved backfilling materials

		Masonry/concrete				Foam mortar
		Back filling				Back filling
Frame variants	Type of installation	Mortar	MFP *	MF ****	Foam ***	Mortar	MFP *	Foam ***
Corner frame	Screw mounting	•	–	–	–	–	–	–
	Plug mounting	•	–	–	–	–	–	–
	Weld-on installation	•	–	–	–	–	–	–

Wrap-around frame 2-part, type 2140 B	Screw mounting	•	•	•	•	–	–	–
	Plug mounting	•	•	•	•	–	–	–
	Weld-on installation	•	•	•	•	•	–	–
	Rebate bolt mounting	–	–	–	–	–	–	–

Corner frame	Screw mounting	•	–	–	–	–	–	–
	Plug mounting	•	–	–	–	–	–	–
	Weld-on installation	•	–	–	–	–	–	–

Corner / counter frame	Screw mounting	•	–	–	–	–	–	–
	Plug mounting	•	–	–	–	–	–	–
	Weld-on installation	•	–	–	–		–	–

Block frame, type 1	Screw mounting	•	•	–	–	•	•	–

Block frame, type 2	Screw mounting	•	•	–	–	•	•	–

		F60-A/F90-A Stahl-Ständerwand					F60-B/F90-B Holz- Ständerwand
		Back filling					Back filling
Frame variants	Type of installation	Mortar	MFP*	GKF **	Foam ***	MF ****	Mortar	GKF **	Foam ***	MF ****
Corner frame	Screw mounting	–	–	–	–	–	–	–	–	–
	Plug mounting	–	–	–	–	–	–	–	–	–
	Weld-on installation	–	–	–	–	–	–	–	–	–

Wrap-around frame 2-part, type 2140 B	Screw mounting	•	–	•	•	•	–	–	–	–
	Plug mounting	–	–	–	–	–	–	–	–	–
	Weld-on installation	–	–	–	–	–	–	–	–	–
	Rebate bolt mounting	–	–	–	–	–	•	•	•	•

Corner frame	Screw mounting	–	–	–	–	–	–	–	–	–
	Plug mounting	–	–	–	–	–	–	–	–	–
	Weld-on installation	–	–	–	–	–	–	–	–	–

Corner / counter frame	Screw mounting	–	–	–	–	–	–	–	–	–
	Plug mounting	–	–	–	–	–	–	–	–	–
	Weld-on installation	–	–	–	–	–	–	–	–	–

Block frame, type 1	Screw mounting	•	•	–	–	–	–	–	–	–

Block frame, type 2	Screw mounting	•	•	–	–	–	–	–	–	–

• possible – not possible

* Moulded mineral wool sections ** Gypsum plasterboard strips *** Novoferm fire protection foam

**** Mineral fibre insulating material (bulk density min. 40 kg/m³, melting point > 1,000 °C, building material class A1, DIN 4102-1 / 4102-4)

NovoPorta Premio Vario T30 (EI2 30): Technical data


Resistance class / Type Designation		Premio Vario T30-1 Door unit	Premio Vario T30-2 Door unit
Approved dimensions
Coordinating size (BRM)	Width min. – max.	625 – 1,125	1,375 – 2,250
	Height min. – max.	1,750 – 2,125	1,750 – 2,125

Door panel
Leaf thickness, approx.		64	64
Sheet thickness, approx.		0.75	0.75
Active leaf	Width min. – max.	–	665 – 1,103
Inactive leaf	Width min. – max.	–	525 – 1,103
Type of opening	as per DIN	Left or right	Active leaf on left or right

Walls
Masonry		≥ 115	≥ 115
Concrete		≥ 100	≥ 100
Foam mortar block / Precision blocks		≥ 150	≥ 150
Reinforced foam mortar wall boards		≥ 150	≥ 150
F60-A and F90-A walls made of gypsum plasterboard (as per DIN 4102, Part 4, Table 48)		≥ 100	≥ 100
F60-B / F90-B timber installation walls (as per DIN 4102, Part 4, Table 49)		≥ 130	≥ 130

Versions
Fire retardant – tested to EN 1634-1 and approved as per DIN 4102		•	•
Optional fire resistant glazing ¹)		•	•
Optional smoke protection		•	•
Optional soundproofing (with lowerable floor seal, without glazing)		approx. 39 dB Rw,P	approx. 38 dB Rw,P
Optional burglar resistance		RC 1N	–

F30 glazing
Rectangular standard glazing Available standard sizes: 200 x 600 mm, 460 x 910 mm Glass retaining strips standard galvanized and primed with powder coating (RAL 9016), Optional preferred Super Colors and RAL of choice (powder coating) or additional stainless steel cover profiles		•	•
Special glazing of choice From 150 x 150 mm to 460 x 1100 mm Frieze widths min. 150 mm on three sides, 180 mm on the lock side Glass retaining strips standard galvanized and primed with powder coating (RAL 9016), Optional preferred Super Colors and RAL of choice (powder coating) or additional stainless steel cover profiles		•	•

Approval number		Z-6.20-2205	Z-6.20-2205

• possible – not possible

¹) Glass for indoor use only (protect against UV light and direct halogen radiation). Glass can only be used within a temperature range of –20 to +45°C.

Sketches only apply for door size 1000 x 2000 mm!

sizes in mm. BR = coordinating size RAM = outer frame dimensions LD = clear passage dimensions

Frames

Frames: Overview

Corner frame

Block frame, type 1, corner of wall

Two-part wrap-around door frame, type 2140B

Corner frame with add-on frame

Block frame, type 2, with trim profile

Corner frame with counter frame

Wrap-around frame

Sills

Sills: Overview

A
Sill, floor level

B3
Sill with continuous frame

RS2
Sealing sill II Hump sill

B1
Sill with continuous frame (continuous door panel and door frame)

C2
Sill with lower stop and seal

Rain cover
Necessary for outdoor use and driving rain (only possible on MZ)

B2
Sill with continuous frame (continuous door frame)

RS1
Lowerable floor seal

Order / Coordinating sizes

Overview of common order / coordinating sizes*

	Order sizes Coordinating sizes	Nominal sizes	Clear Opening height	Outer frame dimensions
	Order sizes Coordinating sizes	Nominal sizes	Clear Opening height	With floor recess, 20 mm	Without floor recess
	Breite x Höhe mm	Breite x Höhe mm	Breite x Höhe mm	Breite x Höhe mm	Breite x Höhe mm
Premio Vario T30-1 Premio Vario MZ-1	750 x 2000	760 x 2005	666 x 1957	828 x 2058	828 x 2038
	750 x 2125	760 x 2130	666 x 2082	828 x 2183	828 x 2163
	875 x 1875	885 x 1880	791 x 1832	953 x 1933	953 x 1913
	875 x 2000	885 x 2005	791 x 1957	953 x 2058	953 x 2038
	875 x 2125	885 x 2130	791 x 2082	953 x 2183	953 x 2163
	1000 x 1875	1010 x 1880	916 x 1832	1078 x 1933	1078 x 1913
	1000 x 2000	1010 x 2005	916 x 1957	1078 x 2058	1078 x 2038
	1000 x 2125	1010 x 2130	916 x 2082	1078 x 2183	1078 x 2163
	1125 x 2000	1135 x 2005	1041 x 1957	1203 x 2058	1203 x 2038
	1125 x 2125	1135 x 2130	1041 x 2082	1203 x 2183	1203 x 2163
	Available sizes: Coordinating size 625 x 1750 mm to 1125 x 2125 mm.

Premio Vario T30-2 Premio Vario MZ-2	1500 x 2000	1510 x 2005	1416 x 1957	1578 x 2058	1578 x 2038
	1500 x 2125	1510 x 2130	1416 x 2082	1578 x 2183	1578 x 2163
	1750 x 2000	1760 x 2005	1666 x 1957	1828 x 2058	1828 x 2038
	1750 x 2125	1760 x 2130	1666 x 2082	1828 x 2183	1828 x 2163
	2000 x 2000	2010 x 2005	1916 x 1957	2078 x 2058	2078 x 2038
	2000 x 2125	2010 x 2130	1916 x 2082	2078 x 2183	2078 x 2163
	2125 x 2125	2135 x 2130	2041 x 2082	2203 x 2183	2203 x 2163
	2250 x 2125	2260 x 2130	2166 x 2082	2328 x 2183	2328 x 2163
	Available sizes: Coordinating size 1375 x 1750 mm to 2250 x 2125 mm.

* Note: Not all of the sizes indicated here are available from stock. Please consult the latest main price list to see which sizes are available from stock.

Standard leaf width on 2 leaf NovoPorta Premio Vario

Standard leaf widths for NovoPorta Premio Vario T30 and MZ double door units

Coordinating width	1500	1750	2000	2125	2250
Division	asymmetric 1/3 : 2/3	asymmetric 1/3 : 2/3	symmetric 1/2 : 1/2	symmetric 1/2 : 1/2	symmetric 1/2 : 1/2
Active leaf width	931	978	978	1040	1103
Inactive leaf width	525	728	978	1040	1103
Clear passage dimensions Active leaf	892	939	939	1001	1064

All sizes in mm

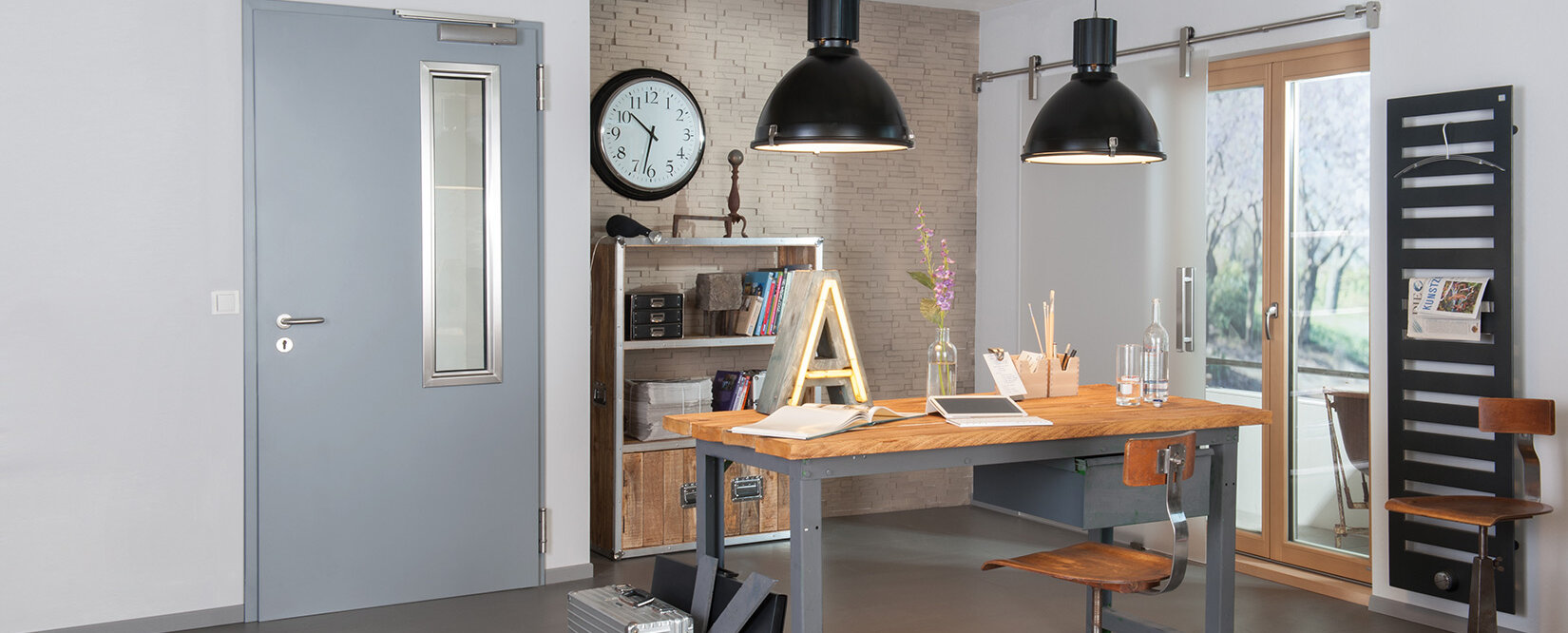

NovoPorta Premio Vario fire resistant doors

Features

Installation

Technology
