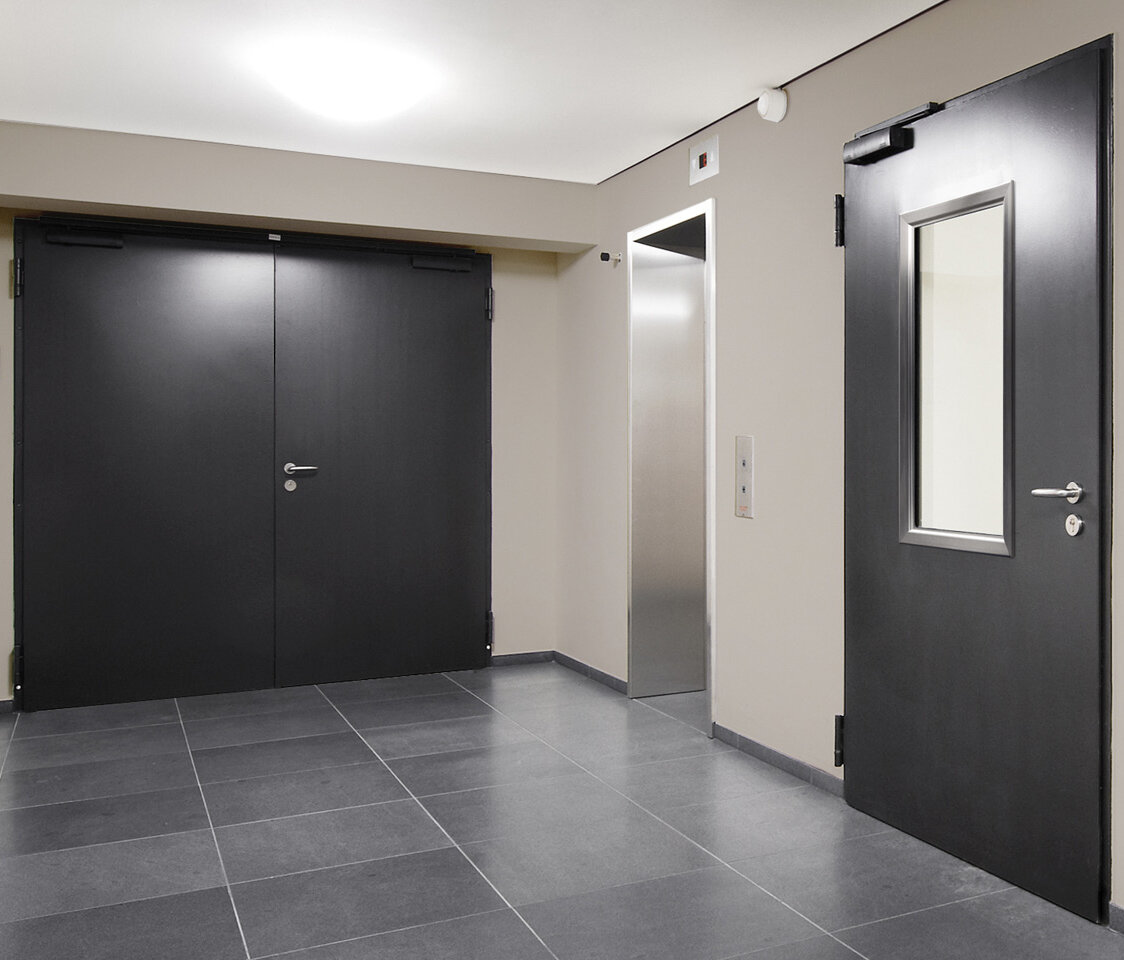

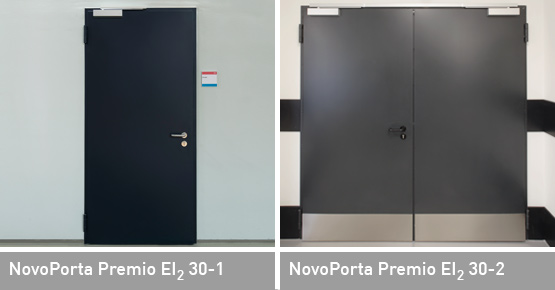

Hardware:

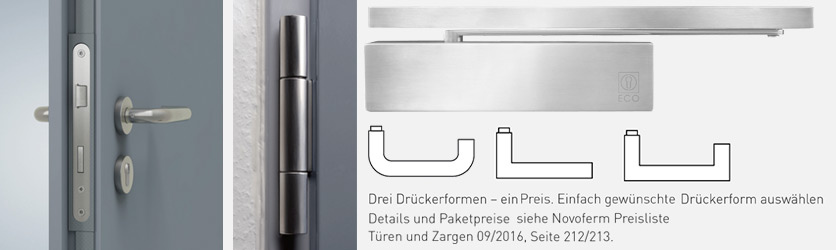

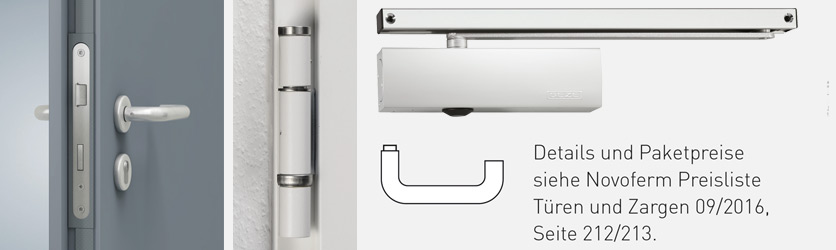

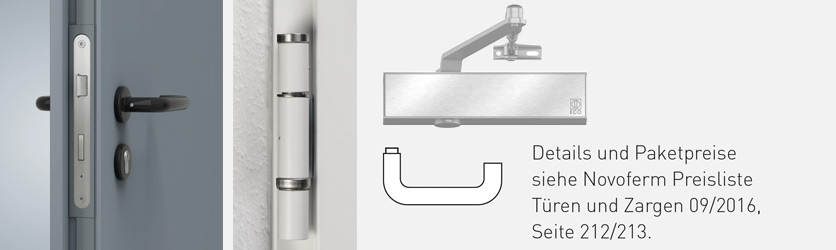

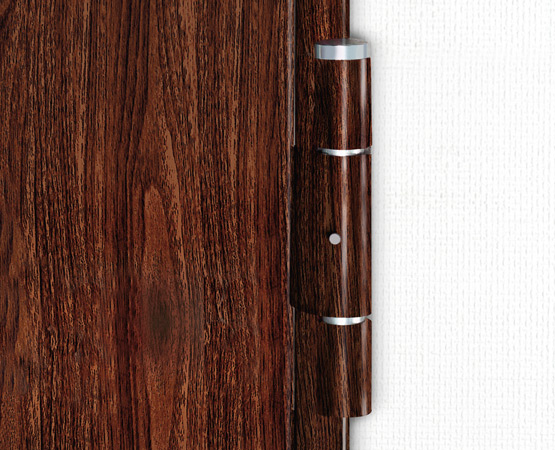

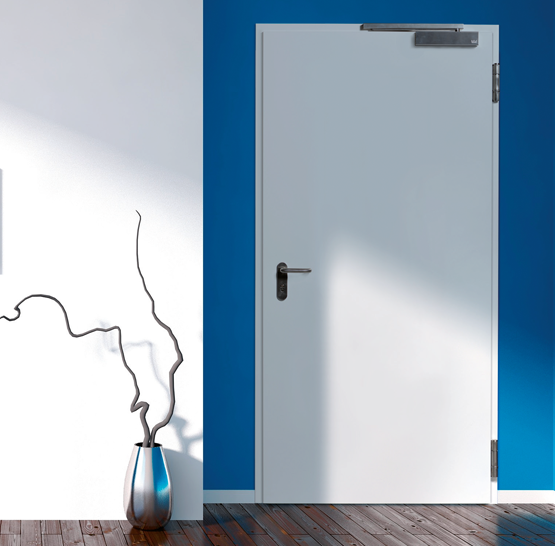

3-part hinge plates, standard equipped with ball bearings. Two hinges per leaf, standard primed white, similar to RAL 9016; optionally available in stainless steel, as adjustable 3-D hinges in steel or stainless steel, or as customized slimline 3-D stainless steel hinges (overhead door closer necessary). Single-leaf doors: one hinge plate and one spring hinge. Double door units: two hinge plates per leaf. Two securing pins per leaf. PC mortice lock with drawback latch, with black rounded handle set (turn-lock mounted). On site profile cylinder (85 mm long, 35/50 mm).
1 leaf doors standard equipped with internal reinforcement for overhead door closer on the hinge side.

Additional features on double door units:
Two Dorma TS 89 F or Geze TS 4000 F overhead door closers and one door coordinator. Flush centre rebate with centre rebate seal. Active leaf with upward locking rebate retracting bolt (upwards and downwards optionally available)

Frames:

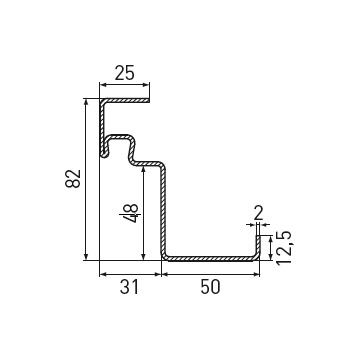

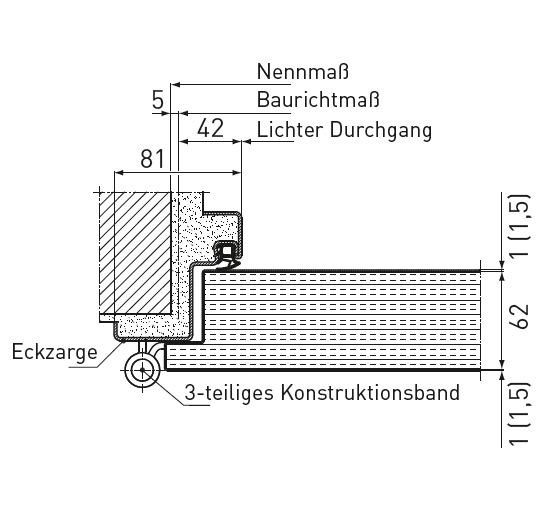

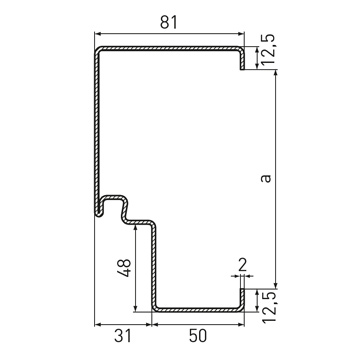

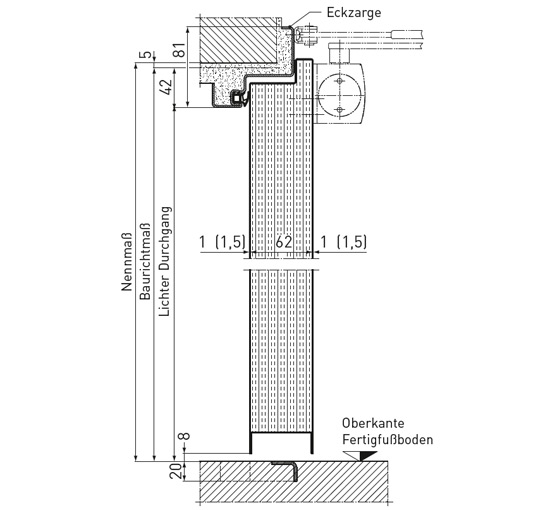

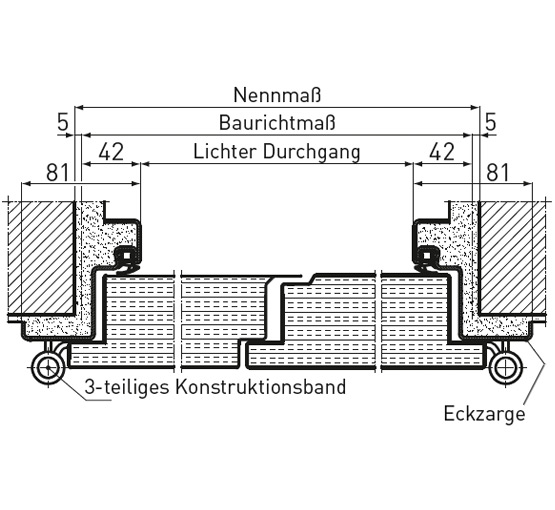

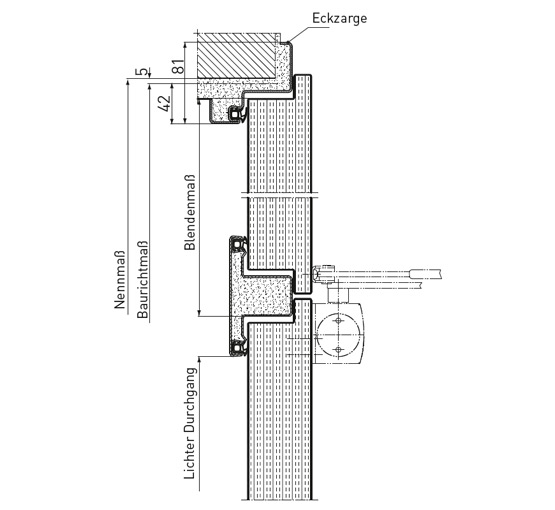

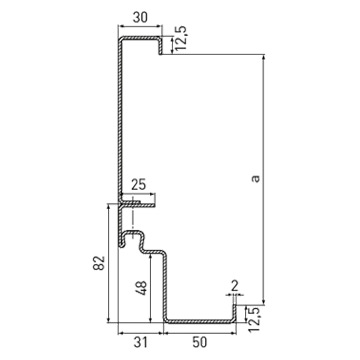

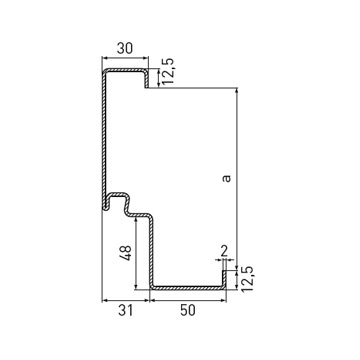

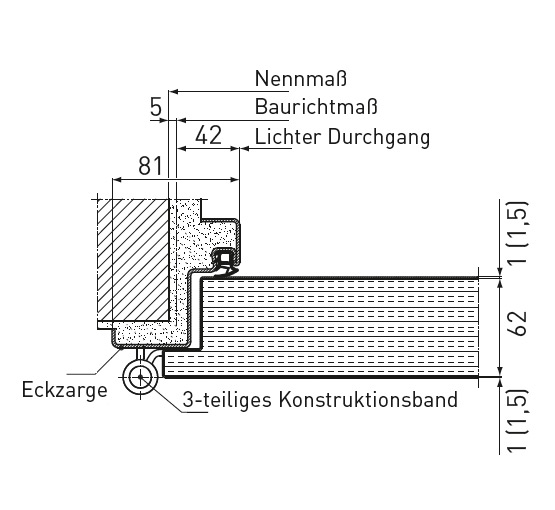

Standard corner frame with three-sided sealing profile, 2.0 mm thick, frame facing width 50 mm, optionally available: wrap-around door frame, 2140B two-part wrap-around frame profile, counter and block frame for butted wall connection, or block frame for installation in front of the wall.

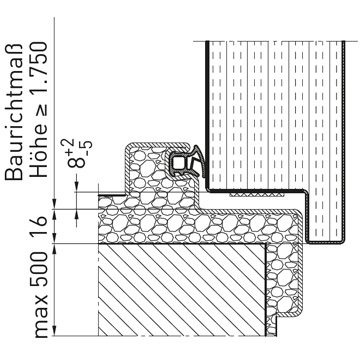

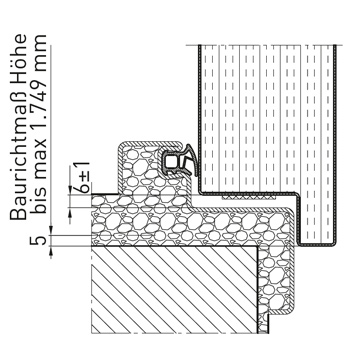

Sills:

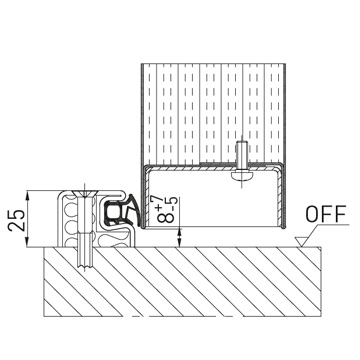

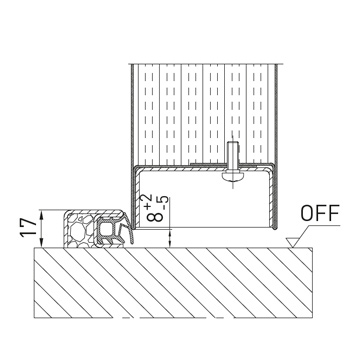

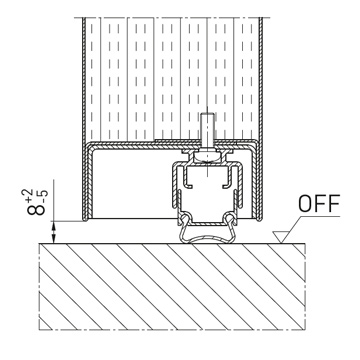

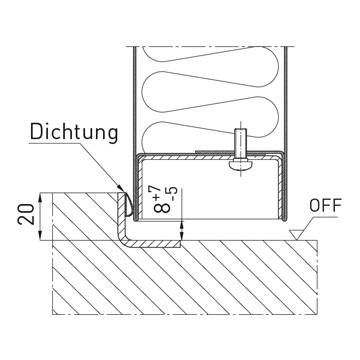

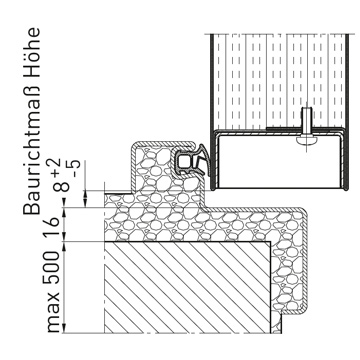

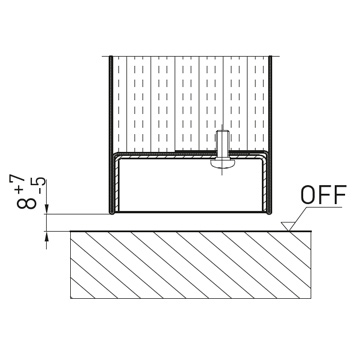

Standard A floor level, B1, B2, B3 optionally available with all-round frame, or C2 with bottom stop and seal, or RS1 sealing sills with lowerable floor seal, RS1 double sill or hump sill with RS2 acoustic threshold seal.

Surfaces:

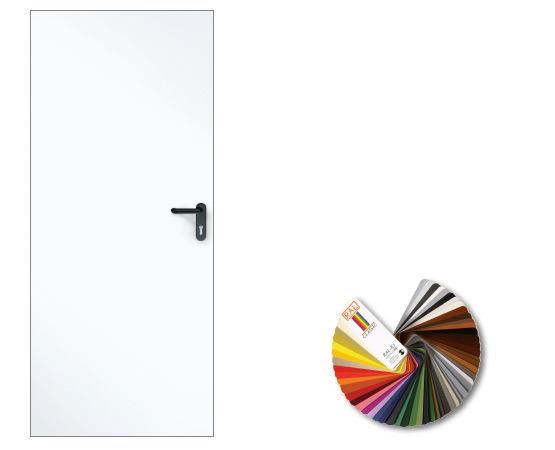

Door leaf and frame galvanized and primed (powder-coated) similar to RAL 9016. Door panel and frame optionally available with Novoferm design finish.

• Top panel/fanlight
• Fire resistant glazing (overhead door closer always necessary)
• Smoke protection as per DIN 18095 or EN 1634-3 with lowerable floor seal (RS1) or hump sill with acoustic threshold seal (RS2) and overhead door closer
• Soundproof (not models with top panel) – tested to EN ISO 140-3, assessed as per EN ISO 717-1 (laboratory values for full leaf and RS1 sill – for single-leaf units 40 dB RW,P , for 2-leaf units 39 dB RW,P )
• Burglar resistant RC2 – both sides tested to EN 1627 – full leaf up to BRM 2500 x 2500 mm (not approved for models with top panel)

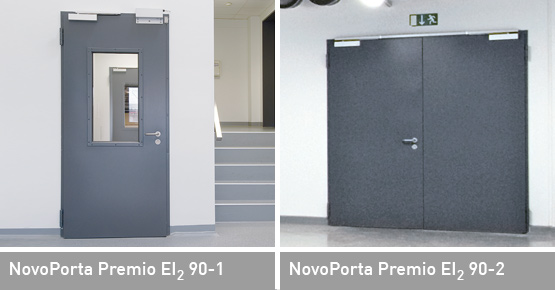

Hardware:

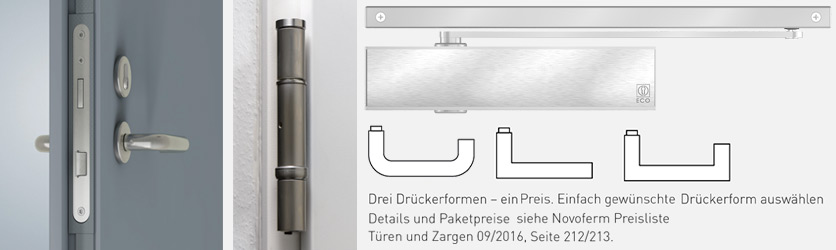

3-part hinge plates, standard equipped with ball bearings. Two hinges per leaf, standard primed white, similar to RAL 9016; optionally available in stainless steel, as adjustable 3-D hinges in steel or stainless steel, or as customized slimline 3-D stainless steel hinges. Two securing pins per door leaf up to coordinating height 2125 mm, three securing pins on heights of 2126 mm or more. Dorma TS 89 F or GEZE TS 4000 F overhead door closer. PC mortice lock with drawback latch, with black rounded handle set (turn-lock mounted). On site profile cylinder (85 mm long, 35/50 mm).

Additional features on double door units:
Second Dorma TS 89 F or Geze TS 4000 F overhead door closer and one door coordinator. Flush centre rebate with centre rebate seal. Inactive leaf with upward and downward locking rebate retracting bolt

Frames:

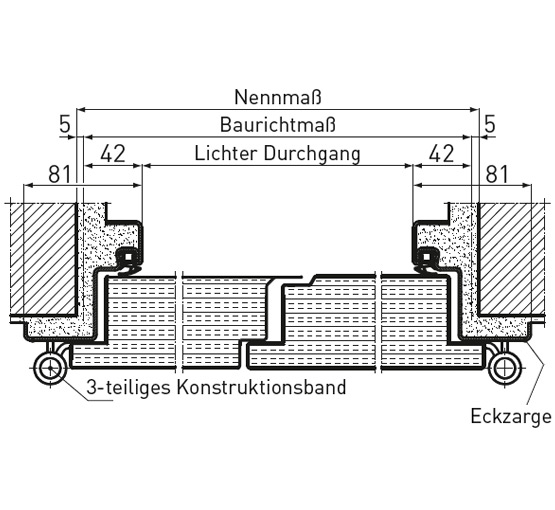

Standard corner frame with three-sided sealing profile, 2.0 mm thick, frame facing width 50 mm, optionally available: wrap-around door frame, 2140B two-part wrap-around frame profile, counter and block frame for butted wall connection.

Sills:
Standard A floor level, B1, B2, B3 optionally available with all-round frame, or C2 with bottom stop and seal, or RS1 sealing sills with lowerable floor seal, or RS1 double sill.

Surfaces:
Door leaf and frame galvanized and primed (powder-coated) similar to RAL 9016. Door panel and frame optionally available with Novoferm design finish.

• Fire resistant glazing
• Smoke protection as per DIN 18095 or EN 1634-3 with lowerable (RS1)
• Soundproofing – tested to EN ISO 140-3, assessed as per EN ISO 717-1.
  (laboratory value for full panel door and RS1 – for single and double leaf units 39 dB RW,P )
• Burglar resistant RC2 – both sides tested to EN 1627 – full leaf up to BRM 2500 x 2500 mm


The right solution no matter what the surroundings:

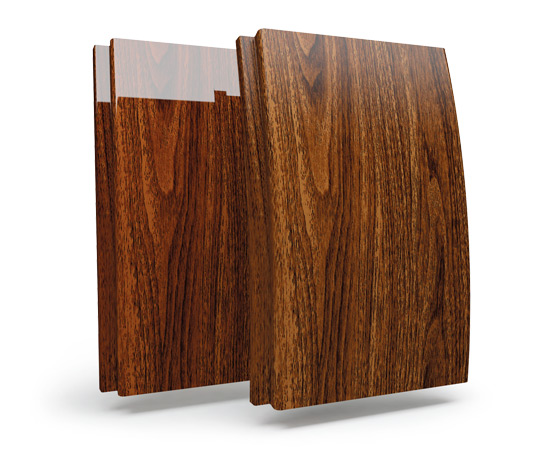

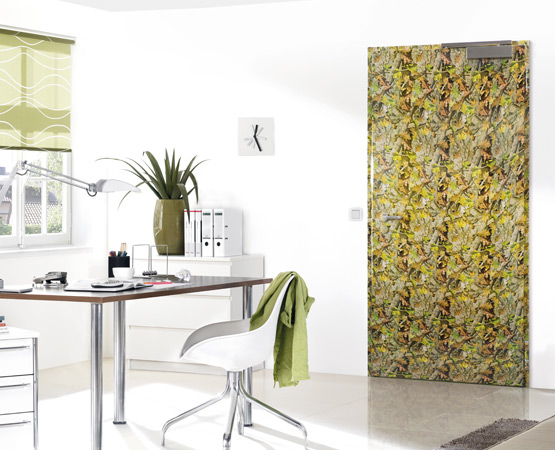

We offer a wide choice of attractive designs with matt (M) or high gloss (H) clear varnish.

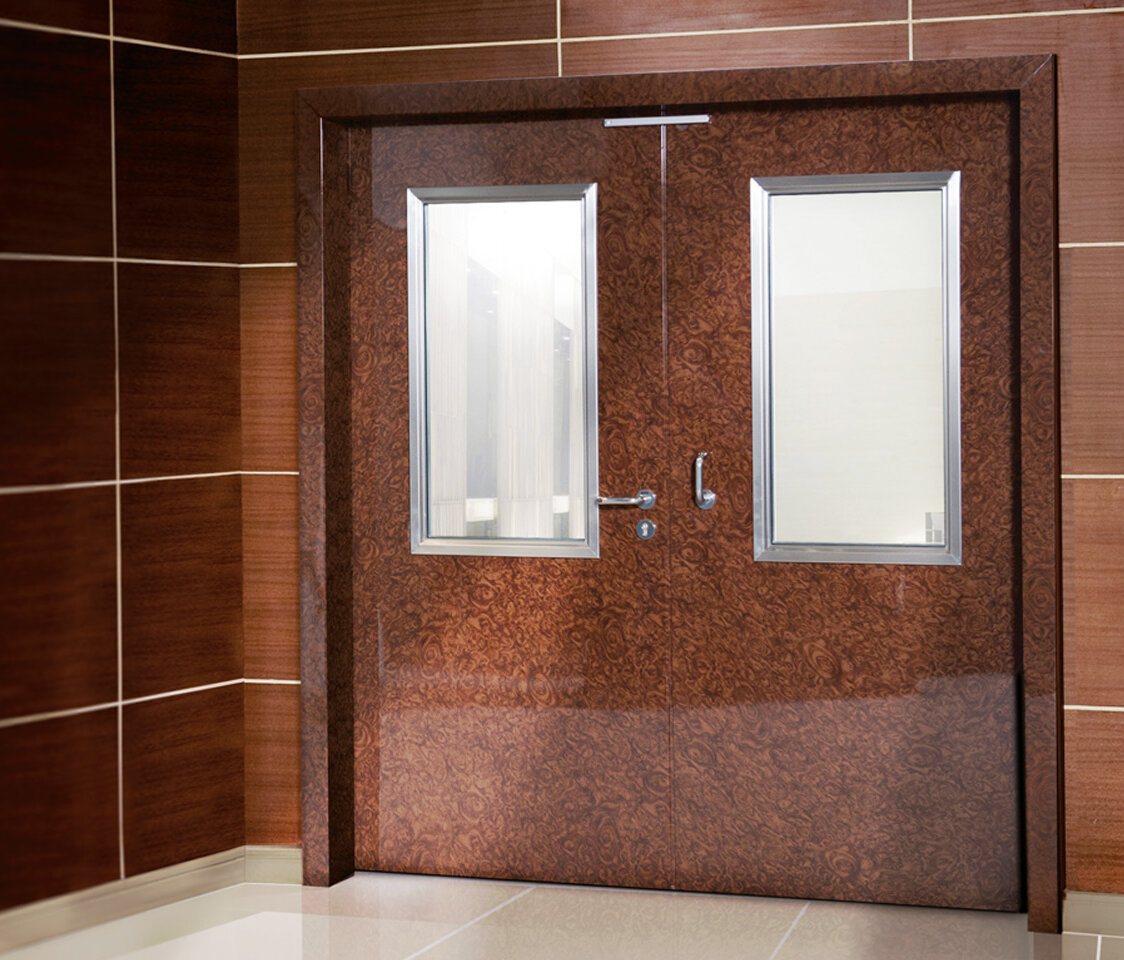

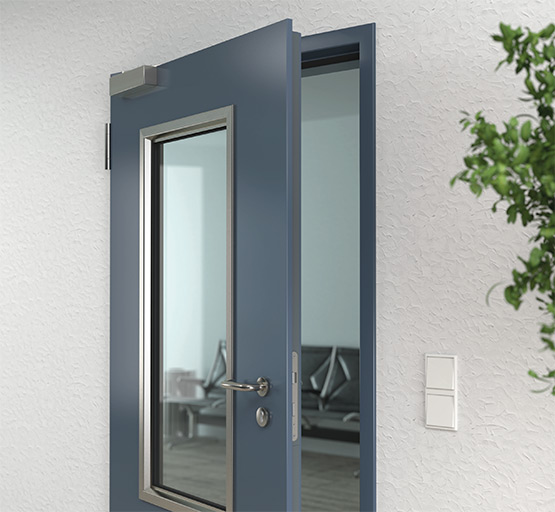

The choice of glazing and frame plays a huge role in determining the appearance of a door, but is increasingly being dictated by growing demands for energy efficiency. Novoferm Premio and Plano fire resistant doors can be fitted with (F30 or F90) fire resistant glazing. We are still the only manufacturer to offer our Premio and Plano multipurpose doors exclusively with insulating glass with substantially improved heat transfer coefficients of U_g 1.1 – 1.3 W/(m²K), depending on the type of glass chosen, as per EN ISO 10077-1.

NovoPorta Plano MZ and NovoPorta Premio MZ can be ordered with the following types of glazing, depending on the model:

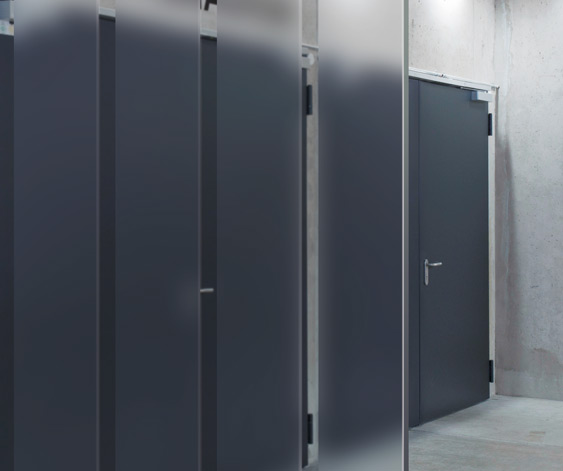

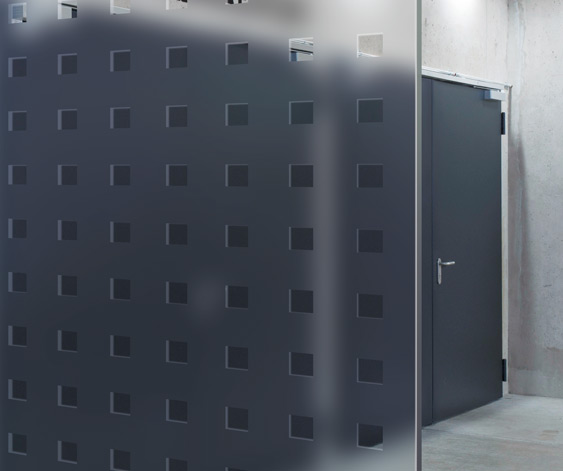

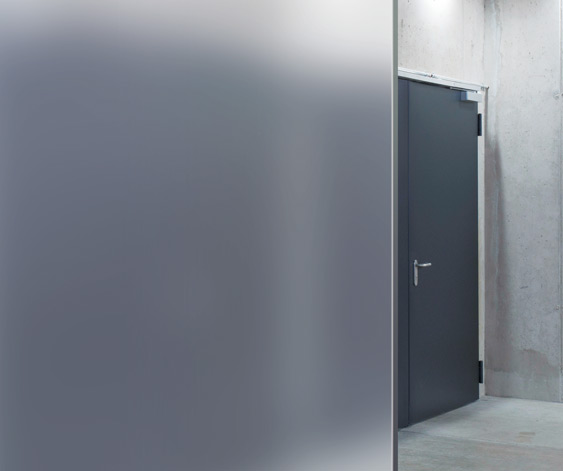

Standard and customized insulation glass with particularly low heat transfer coefficients as per EN ISO 10077-1. Laminated or tempered safety glass is also available, of course. Ornamental glazing (float glass) is also available featuring three different designs: Mastercarré, Masterligne and opaque glass (see illustrations below) for individual designs. Their different levels of refraction ensure the required degree of privacy.

Glass for indoor use only (protect against UV light and direct halogen radiation). Glass can only be used within a temperature range of -20 to +45 °C

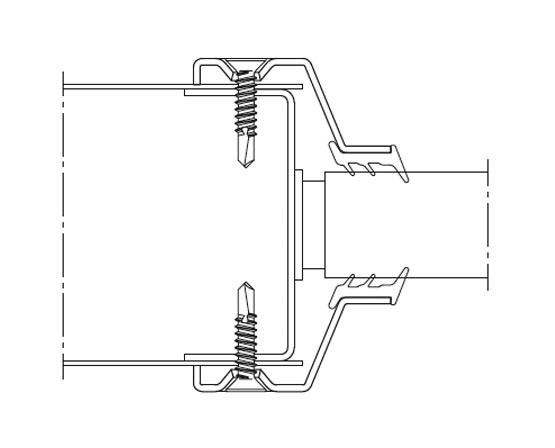

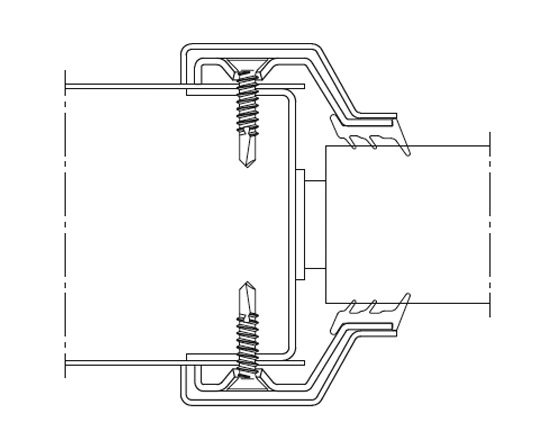

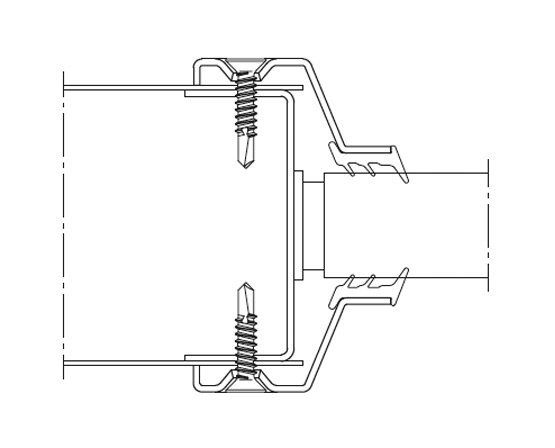

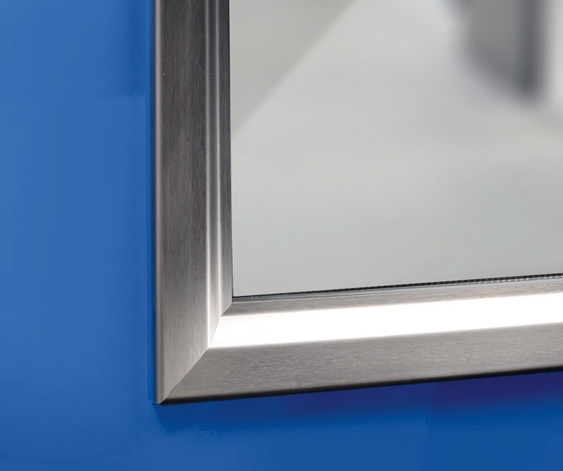

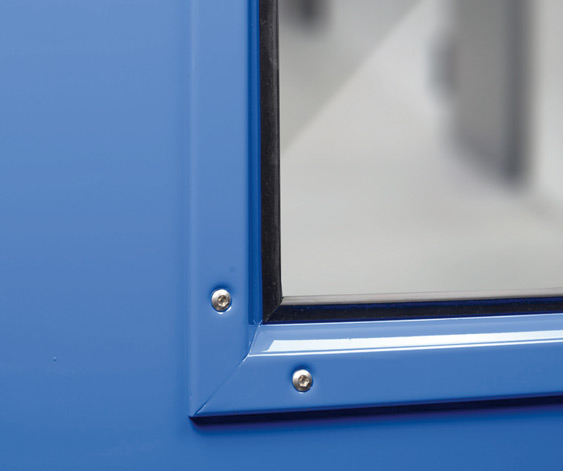

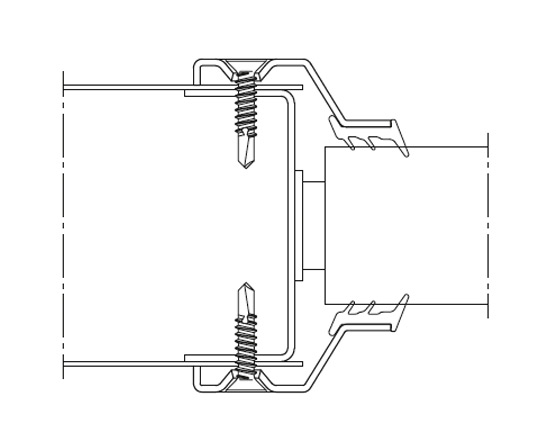

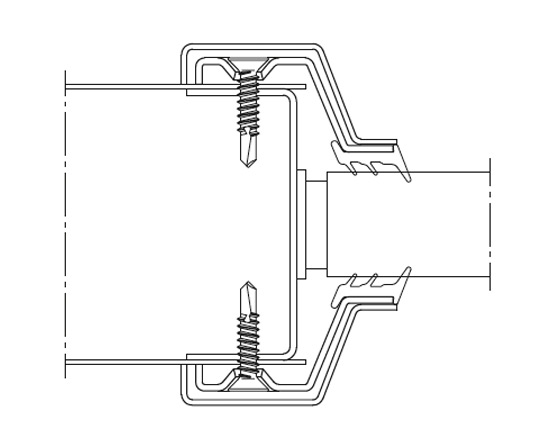

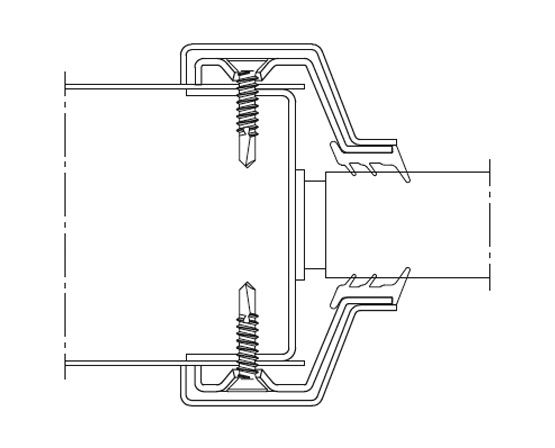

²) Standard steel glazing profiles are visibly bolted on both sides.
    Additional safeguard on the hazard/outside of MZ doors.

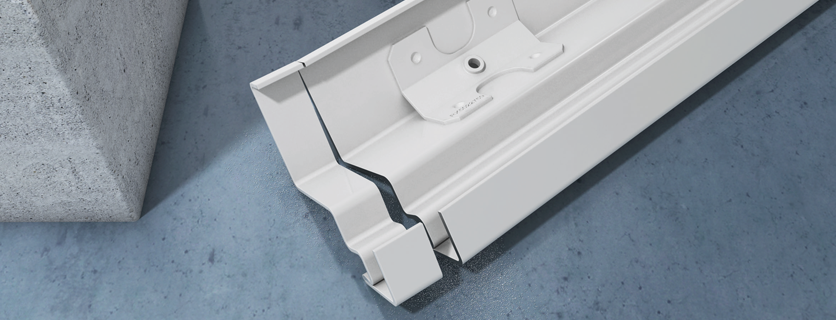

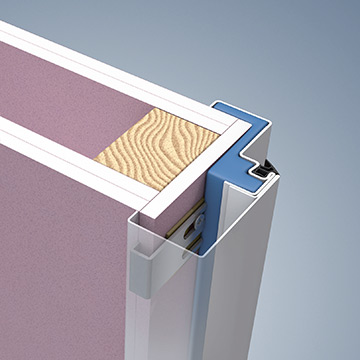

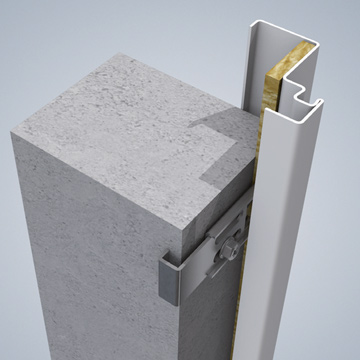

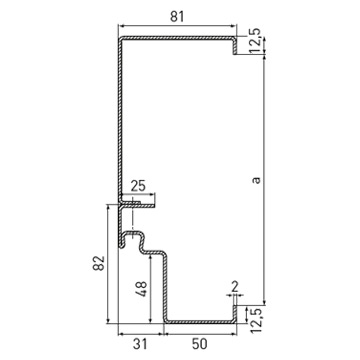

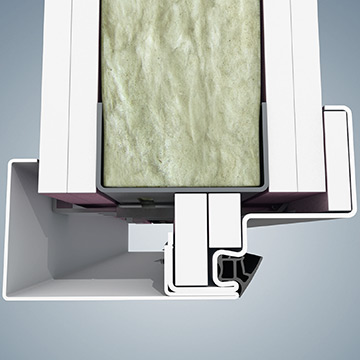

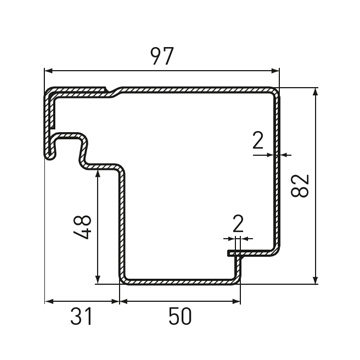

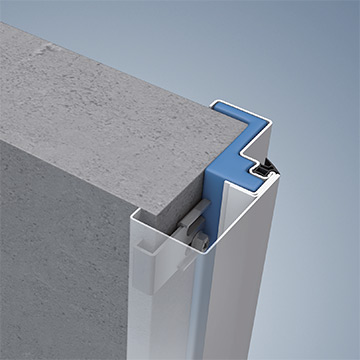

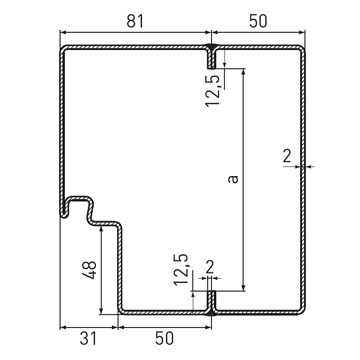

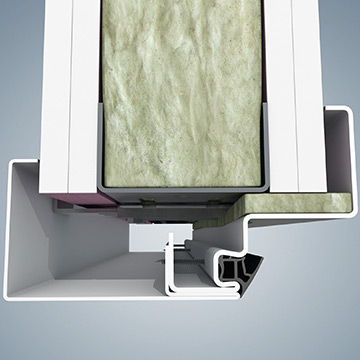

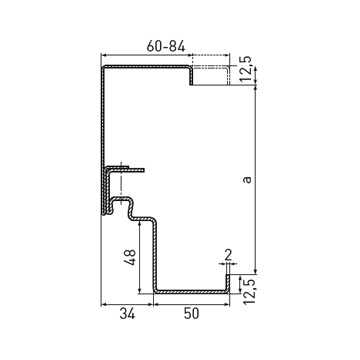

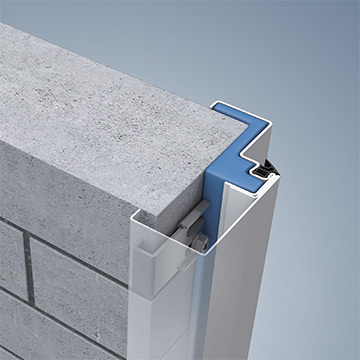

A corner frame is normal, while a supplementary universal profile that is not backfilled is special. Combined, this clever union of front and counter skin creates a two-part wrap-around door frame – the 2140B. Which is in a class of its own. Even corner frames already in place can be retrofitted – or better: upgraded – with a counter skin.

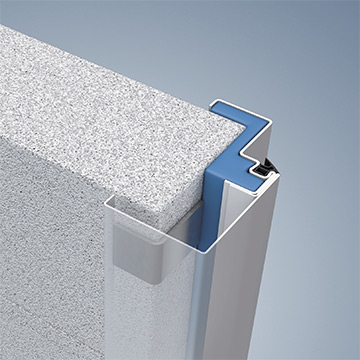

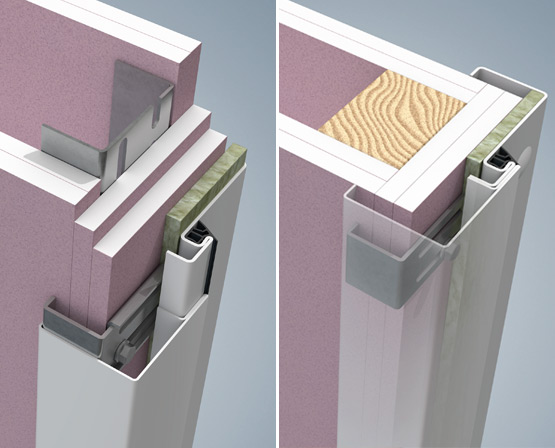

Further benefits: According to the approval, only the front skin of a frame must always be backfilled – while the counter skin can be left empty. The assembly process is facilitated by various backfilling options, as well as by the installation kits that can be supplied for virtually any type of wall (see illustrations).

The combination of NovoPorta Premio and 2140B universal frame profile is, of course, approved as an all-in-one system – complete with smoke and fire protection (T30 / T90), soundproofing and burglar resistance.

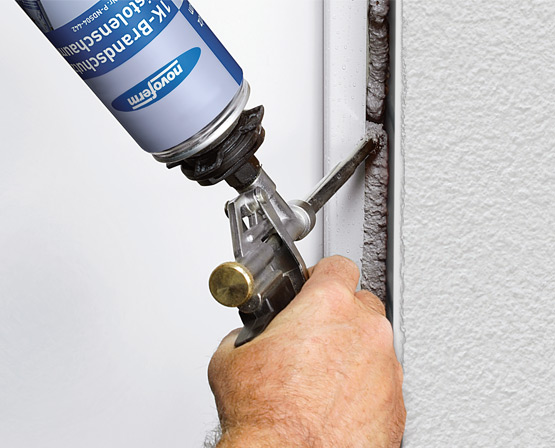

You can turn virtually any idea into reality with the 2140B frame profile. After all, it doesn't just look amazingly good: it is also quick to fix in place and cleanly backfill with the aid of the installation kits for all types of walls. Depending on the installation team and conditions on site, several flexible options for approved backfilling materials exist.

The smart combination of front and counter skin enables impressively fast and clean installation.

Available for masonry and concrete walls up to 300 mm thick.

* Minimum density 40 kg/m³, melting point > 1,000°C, building material class A1 / Euroclass A1

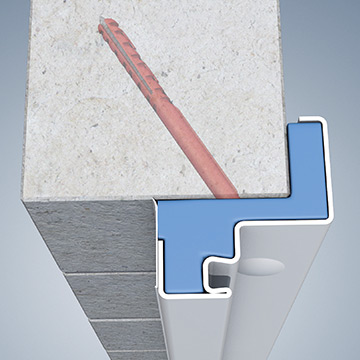

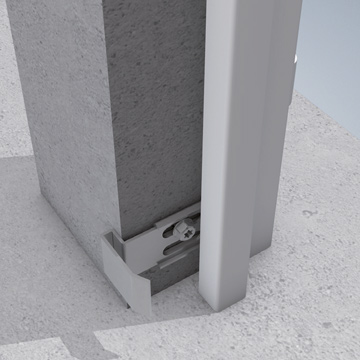

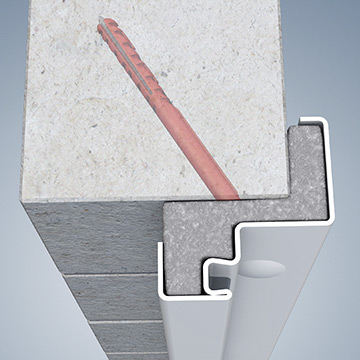

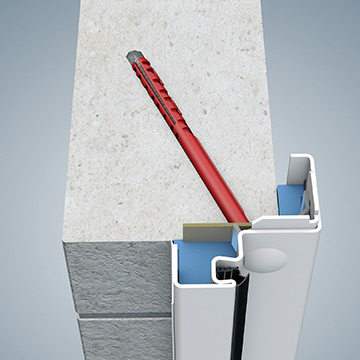

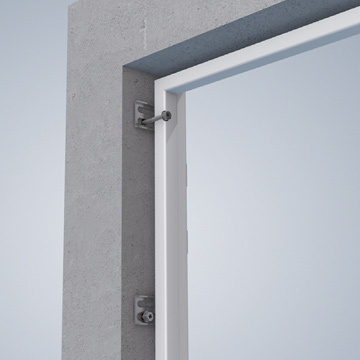

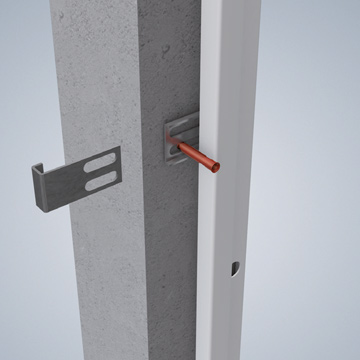

Regardless of whether you are installing a normal corner frame or 2140B two-part wrap-around frame: The bolt-mounted rebate method developed by Novoferm is the quick and clean way to install frames attractively. Best of all: You only need one screw per fastening point to guarantee maximum stability. Since you only need half the number of screws, installation is much faster.

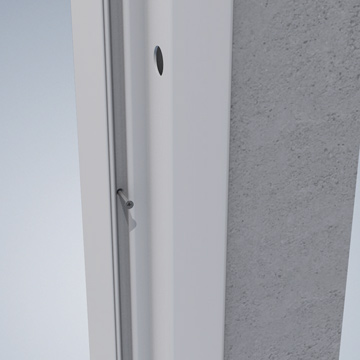

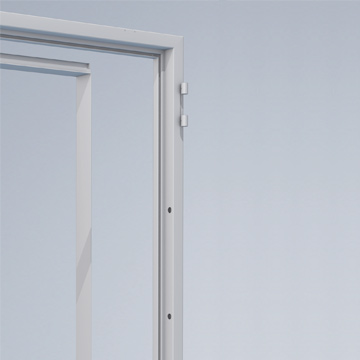

And the final result looks really good, as the drill holes concealed in the frame rebate are covered with caps that you can paint over and which are completely invisible when the door is closed.

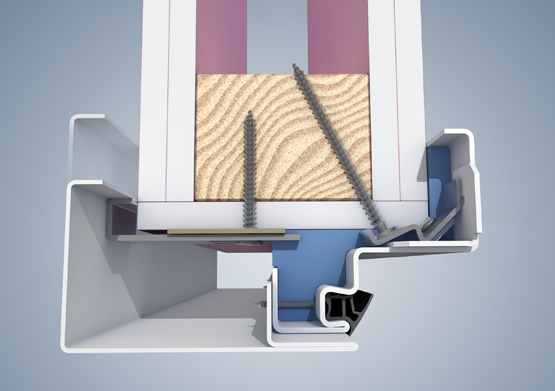

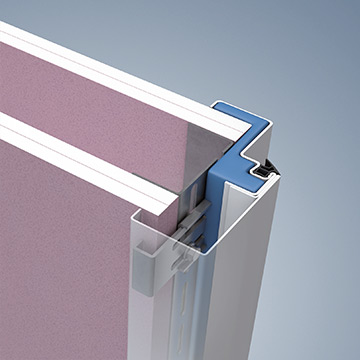

The procedure is building code approved for T30, T90, smokeproof or multipurpose doors, and for burglar resistant (RC2) doors. It is suitable for fair faced concrete and masonry walls, but also for gypsum plasterboard partition walls with timber frames classed F60-B or higher. If the finished floor has already been laid, the floor recess for the corner frame can be shortened directly on site.

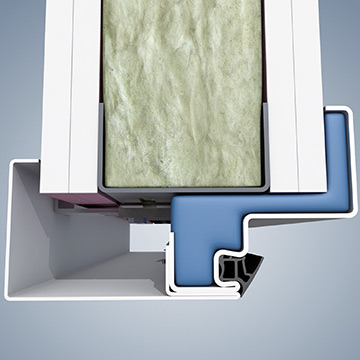

If you only have to backfill half, you can work twice as fast – especially if you can even choose which material to work with. As the counter skin on a T30 frame profile can be left completely empty, you only need to backfill the rebate section on the front skin, e.g. with loose mineral wool. This material is popularly used to fill F60-A/F90-A walls and therefore usually already available on site.

The details at a glance
