NovoPorta Plano fire resistant doors

Novoferm’s NovoPorta Plano fire resistant doors with flush closing door panels are available in fire resistant class T30 (EI₂ 30) for indoor use.

Your advantages at a glance!

Single and double fire resistant steel door units for indoor use
Fire retardant – tested to EN 1634-1 and building code approved as per DIN 4102
Flush closing door panel, 64 mm thick, 1.0 mm sheet metal
Door leaf and frame galvanized and primed (powder-coated) similar to RAL 9016

NovoPorta Plano T30 (EI2 30): the details

Hardware:

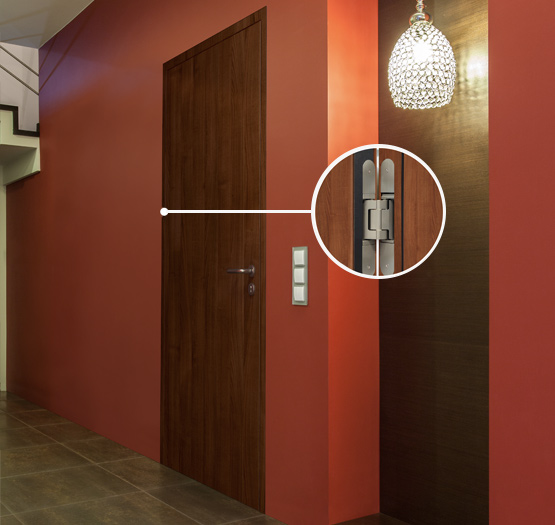

3-part 3-D adjustable hinges, standard equipped with sliding bearings. Two hinges per leaf, standard primed white, similar to RAL 9016; optionally available in stainless steel. Two securing pins per leaf. PC mortice lock with drawback latch, with stainless steel forend and black rounded handle, turn lock mounted with round rosette plates. On site profile cylinder (90 mm long, 45/45 mm). Single leaf doors standard equipped with Novoferm NFGS 5 slide channel door closer on the hinge side.

Additional features on double door units:
Geze TS 5000 ISM or Dorma TS 93 GSR slide channel overhead door closer with integrated door coordinator. Flush centre rebate with centre rebate seal. Active leaf with upward locking (optional upward and downward locking) rebate retracting bolt.

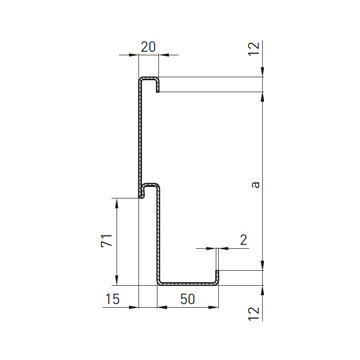

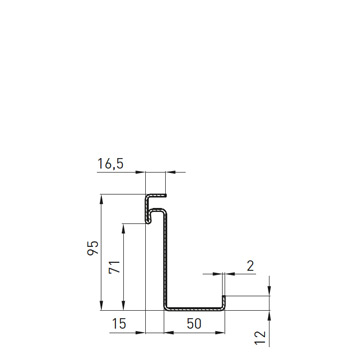

Frames:

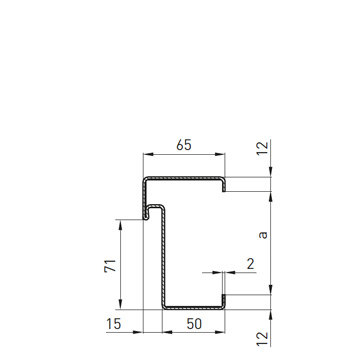

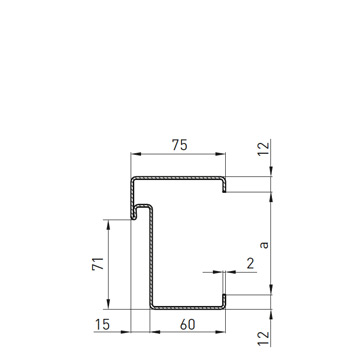

Standard corner frame with three-sided sealing profile, 2 mm thick, frame facing width 50 mm, optionally available: wrap-around door frame, 2240B two-part wrap-around frame profile, counter frame and block frames for butted wall connections.

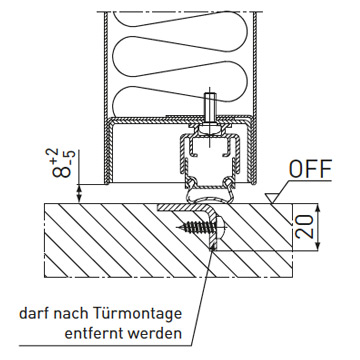

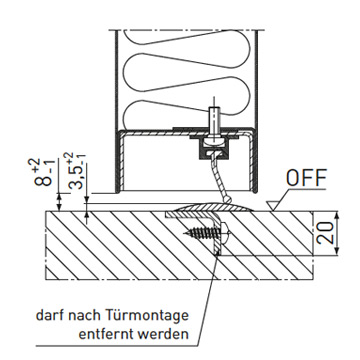

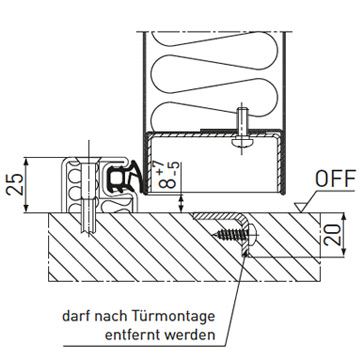

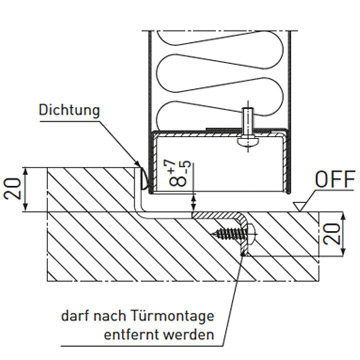

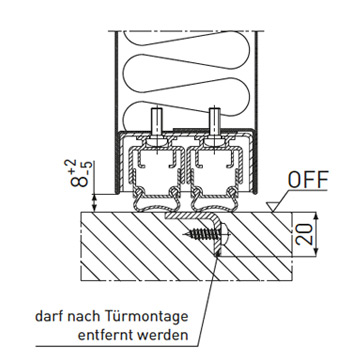

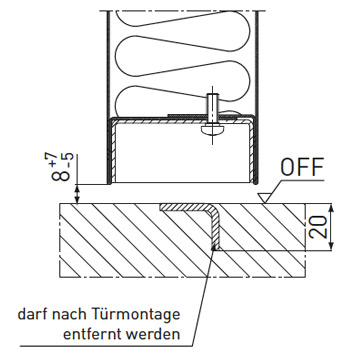

Sills:
Standard A floor level, B3 optionally available with all-round frame, or C2 with bottom stop, or RS1 sealing sills with lowerable floor seal, RS1 double sill or hump sill with RS2 acoustic threshold seal.

Surfaces:
Door leaf and frame galvanized and primed (powder-coated) similar to RAL 9016. Door panel and frame optionally available with Novoferm design finish.

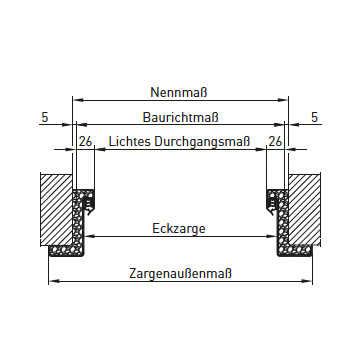

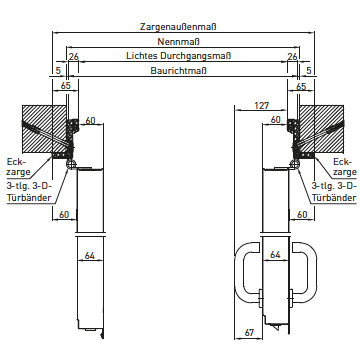

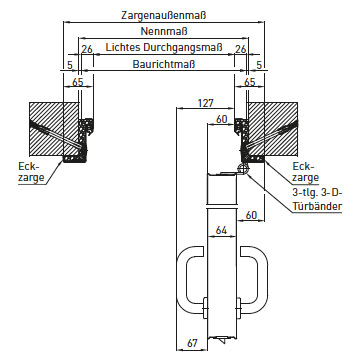

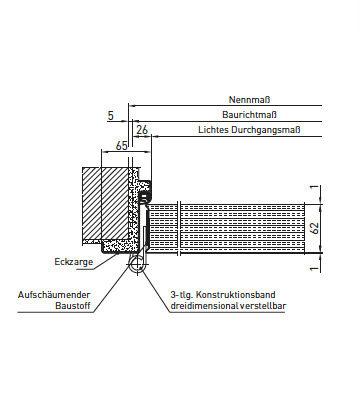

Horizontal section, 1 leaf

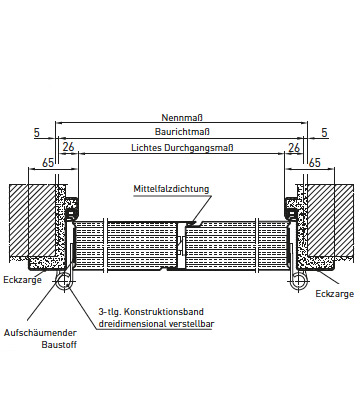

Horizontal section, 2 leaf

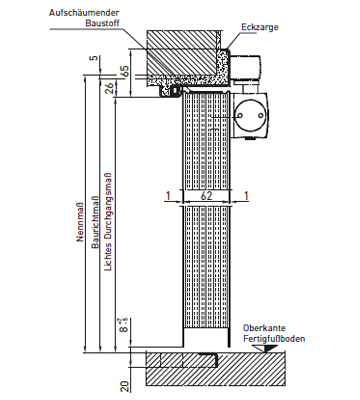

Vertical section

Optionally enhanced with:

Fire resistant glazing
Smoke protection as per DIN 18095 or EN 1634-3 with lowerable floor seal (RS1) or hump sill with acoustic threshold seal (RS2)
Soundproof – tested to EN ISO 140-3, assessed as per EN ISO 717-1 (laboratory values for full leaf and RS1 sill – for single-leaf units: 35 dB RW,P, double door units: still undergoing testing)
Burglar resistant RC2 – both sides tested to EN 1627 – full leaf up to BR 2500 x 2500 mm (undergoing testing)

Features

Surface finishes and designs

Attractive design for challenging demands.

Perfect for businesses, lobbies, lounges.

Uncompromisingly straightforward design: This door concept is perfect for enhancing attractive architecture with secure technology - in construction projects, for example, or sophisticated office and surgery environments, hotels or restaurants, or new buildings or renovation projects.

NovoPorta Plano is available with one or two leaves in sizes up to 2500 x 2500 mm to suit individual requirements. Since modern doors are not just expected to be perfectly engineered and particularly secure but also have to satisfy sophisticated design requirements, Plano offers a huge choice of surface finishes, colours and optional features.

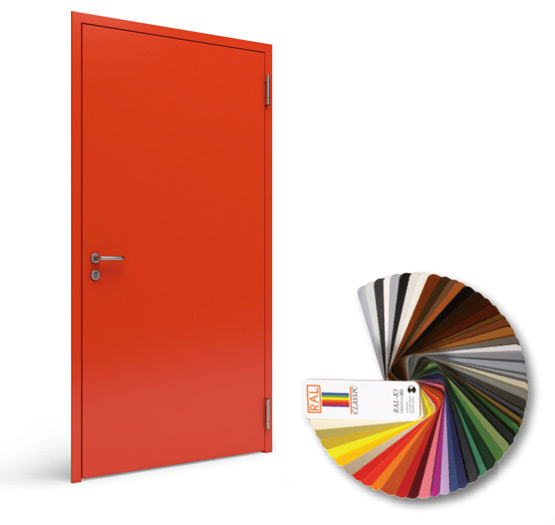

Colours inspire emotions

There are no limits to NovoPorta Plano; it opens up a whole new world of design scope. The basic model with pure white powder coating is just as popular as the virtually unlimited spectrum of RAL, DB and NCS colours, or the seven optional Super Dekor wood decor finishes. All of which enable NovoPorta Plano to be matched to a corporate design or to blend into practically any colour scheme. Or quite simply to appeal to the people whose lives it shares.

And because a door always has two sides, they can feature different colours, or even panels, frames or hinges.

Long live diversity!

Designs that attract attention or blend in

Anyone who believes a smooth colour surface offers insufficient scope for design can choose from a large range of laminates featuring all sorts of different patterns. But even then the options offered by the NovoPorta Plano colour concept are not exhausted: doors can also be supplied in a design of choice that is as individual as a property owner’s imagination.

All laminates are lightfast and robust. The top coat seal with matt or high gloss finish provides effective protection against the rough and tumble of everyday life.

01-3004-M (H)

07-8001-M (H)

12-8023-M (H)

03-8001-H

01-9016-M (H)

08-9016-M (H)

13-9016-M (H)

03-8012-H

02-9005-M (H)

09-3004-M (H)

14-9016-M (H)

06-8001-H

04-8001-M (H)

10-8001-M (H)

15-9016-M (H)

06-8007-H

04-8007-M (H)

10-8004-M (H)

16-1037-M (H)

Customized designs are also possible – talk to us!

05-9016-M (H)

11-9016-M (H)

17-9016-M (H)

The right solution no matter what the surroundings:
We offer a wide choice of attractive designs with matt (M) or high gloss (H) clear varnish.

Glazing options

The choice of glazing and frame plays a huge role in determining the appearance of a door, but is increasingly being dictated by growing demands for energy efficiency. Novoferm Premio and Plano fire resistant doors can be fitted with (F30 or F90) fire resistant glazing. We are still the only manufacturer to offer our Premio and Plano multipurpose doors exclusively with insulating glass with substantially improved heat transfer coefficients of U_g 1.1 – 1.3 W/(m²K), depending on the type of glass chosen, as per EN ISO 10077-1.

NovoPorta Plano MZ and NovoPorta Premio MZ can be ordered with the following types of glazing, depending on the model:
Standard and customized insulation glass with particularly low heat transfer coefficients as per EN ISO 10077-1. Laminated or tempered safety glass is also available, of course. Ornamental glazing (float glass) is also available featuring three different designs: Mastercarré, Masterligne and opaque glass (see illustrations below) for individual designs. Their different levels of refraction ensure the required degree of privacy.

Types of glazing for NovoPorta Plano and Premio MZ models	MZ-1 1 leaf	MZ-2 2 leaf
24 mm insulating glass, transparent float glass (standard glass)*	•	•
24 mm VSG/VSG (laminated) insulating glass (standard glass)	•	•
24 mm VSG/VSG (laminated) insulating glass with matt foil (standard glass)	•	•
24 mm insulating glass, ornamental float glass, white/Mastercarré*	•	•
24 mm insulating glass, ornamental float glass, white/Masterligne*	•	•
24 mm ESG/ESG (tempered) insulating glass	•	•
Further special glazing options (insulating glass only) available on request, glass thickness: 24 mm	•	•
Glazing fixtures for on-site 24 mm insulating glass	•	•

With glazing, the secured glass strip is standard attached on the hinge side (opposite hinge side is also possible on request). / *Observe workplace guidelines and accident prevention regulations.

NovoPorta Plano versions: Ornamental glazing

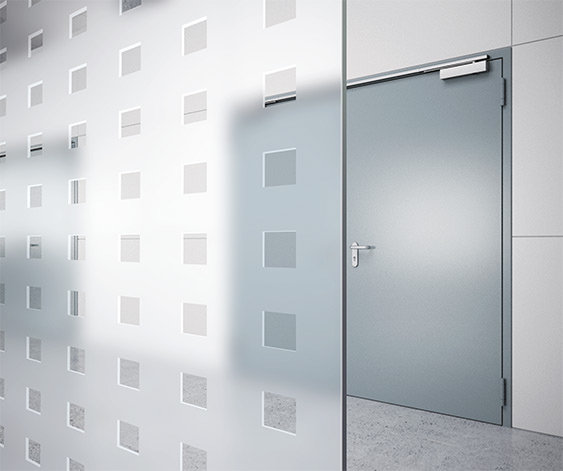

Mastercarré

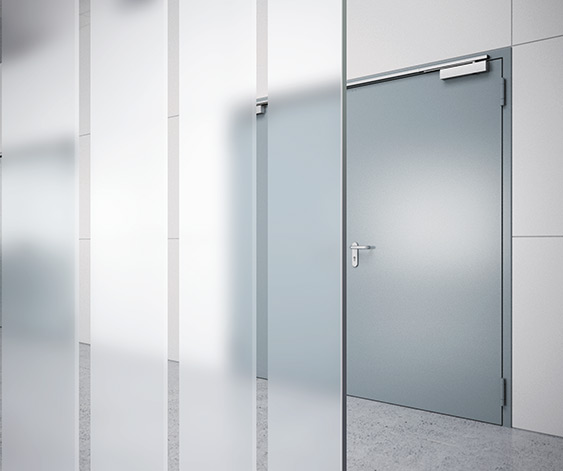

Masterligne

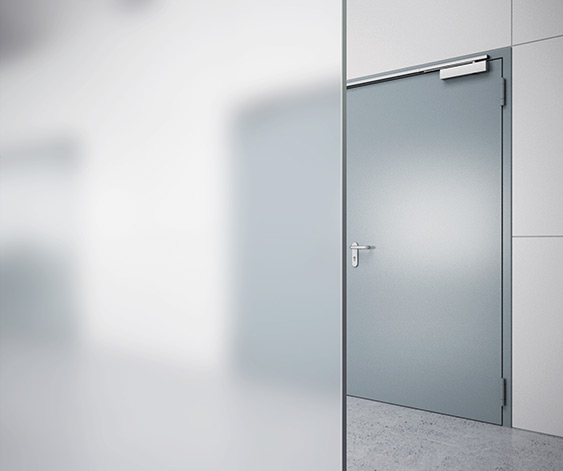

Matt foil (opaque glass)

Impact resistant glazing

Impact resistant glazing as per EN 356 is standard on RC2 doors. Any NovoPorta Plano and Premio door – even T30 models – can, however, be optionally fitted with P4A customized glazing for even more reassurance.

Glass retaining strips can also be safeguarded against anyone unscrewing or levering them off.

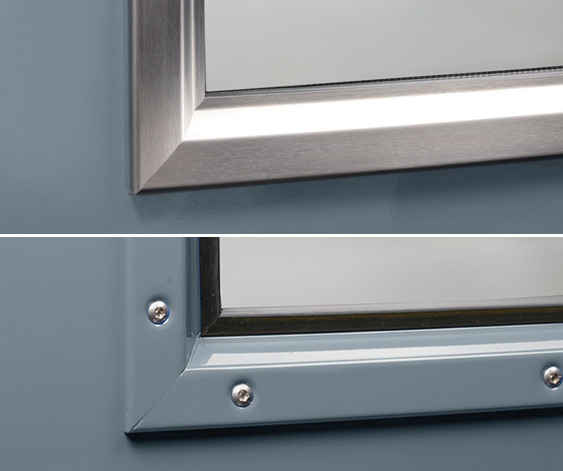

Glass retaining and cover strips

Functional glass retaining and elegant cover strips

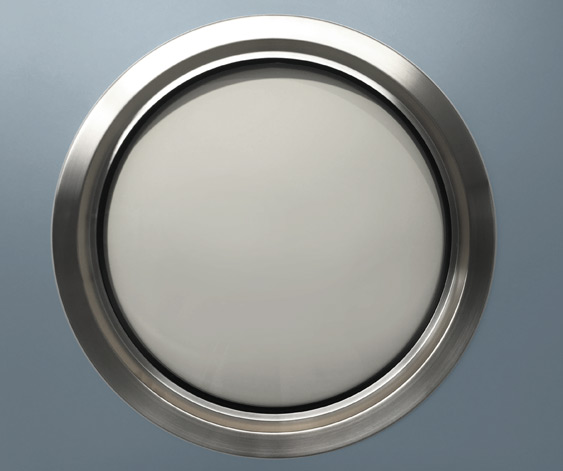

Elegant stainless steel cover strips

Irrespective of whether the glazing is conventionally rectangular or round:
The elegant stainless steel cover strips definitely enhance the appearance of Plano with glazing. The strips are simply fitted over the standard retaining strips.

Material: Stainless steel,available for rectangular and round glazing

Glass retaining strip made of varnished steel

NovoPorta Plano can be supplied with sturdy steel glass retaining strips which can be painted the same colour as the door to produce a uniform appearance of the door glazing throughout a building. The width of the strips is always the same – regardless of whether the door is a T30 or MZ model.

Material: Stainless steel / Steel

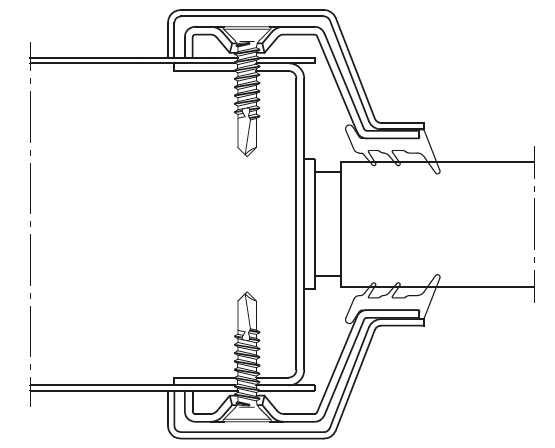

Glazing profiles

NovoPorta Plano T30-1 and T30-2 ¹) ²)

Available types of glass:
F30 transparent glazing for indoor use

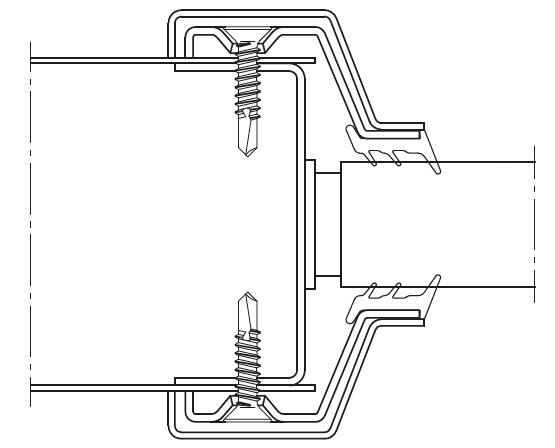

Steel glazing profiles
For rectangular and round standard-compliant and special glazing

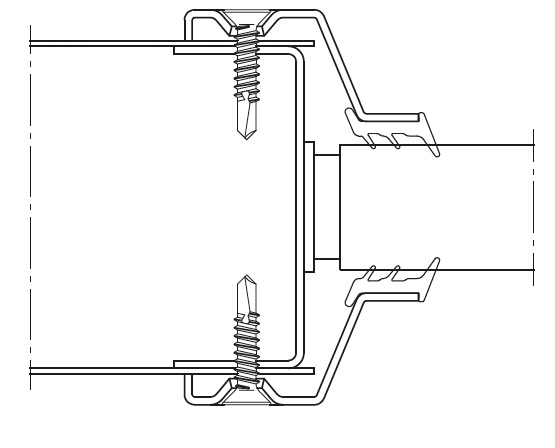

Glazing profiles with additional stainless steel cover profiles
For rectangular and round standard-compliant and special glazing

NovoPorta Plano MZ-1 and MZ-2 ²)

Available types of glass:
Only available with insulating glass

Steel glazing profiles
For rectangular and round standard-compliant and special glazing

Glazing profiles with additional stainless steel cover profiles
For rectangular and round standard-compliant and special glazing

¹) Glass for indoor use only (protect against UV light and direct halogen radiation).
Glass can only be used within a temperature range of -20 to +45 °C
²) Standard steel glazing profiles are visibly bolted on both sides.
Additional safeguard on the hazard/outside of MZ doors.

Assembly

Look good in any surroundings, quickly installed in lots of walls!

Quite simply, a NovoPorta Plano always looks good. Due partly to the wide choice of surface finishes and colours ranging from RAL of choice and Super Dekor wood laminates to design laminate coatings. But also due to the standard omission of a floor recess on the Plano, which makes it ideal, for example, for drywall construction or for waiting to fit the door until construction has progressed. Which significantly reduces the risk of damage.

What is the point of choosing the most attractive door design only to have it – or even the floor and walls – damaged due to complicated installation procedures? NovoPorta Plano is the perfect option, offering a choice of installation procedures that are all fast, simple and clean. Depending on the type of wall, rebate bolt mounting in combination with a corner frame can be used, or a two-part 2240B wrap-around frame, for example. The latter consists of a corner frame and special 2240B counter skin. What makes it so clever is that the corner frame can even be retrofitted with the counter skin.

The structure can be backfilled – quickly and cleanly – with loose mineral wool* and Novoferm fire protection foam, or conventional mortar. This procedure is particularly fast when using two-skinned frames such as the 2240B as the counter skin can remain empty; only the corner frame has to be backfilled. In some cases, a 2240B frame profile may not actually need to be backfilled at all – and is still tested to EN 1634 with building code approval as per DIN 4102.

* Bulk density min. 40 kg/m³, melting point > 1,000 °C, building material class A1, DIN 4102-1 / DIN 4102-4

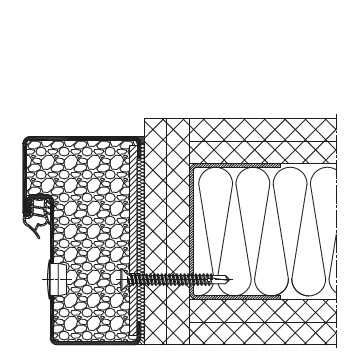

Special drywall construction solutions / frame backfilling solutions

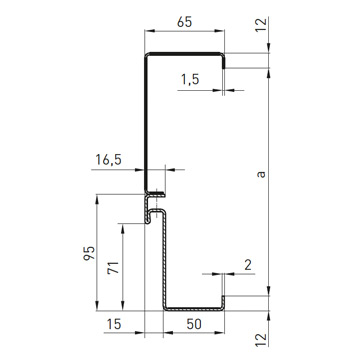

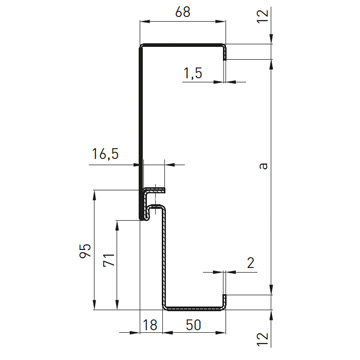

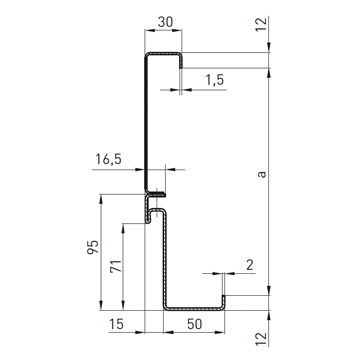

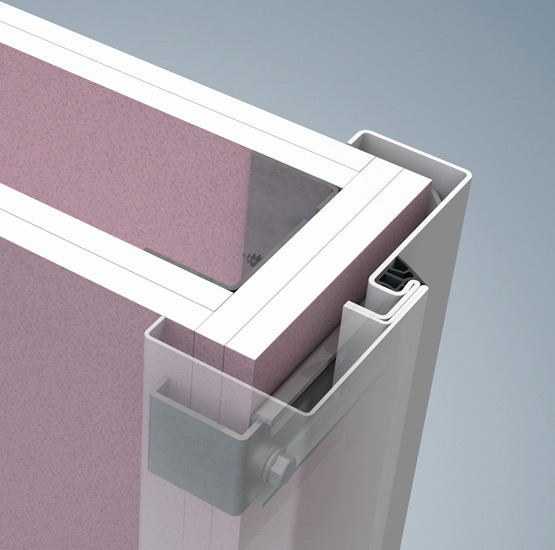

NovoPorta Plano with variable 2240B frame profile

F60-A and F60-B lightweight partition walls have proven their capacity as indoor fire protection solutions that are quick, clean and flexible to install. The NovoPorta Plano T30 door system specifically for installation walls allows even flush closing doors with frames to be installed quickly, easily and cleanly. The system comprises the particularly attractive NovoPorta Plano steel door and the 2240B two-part frame profile.

One major advantage is the approved use of Novoferm fire protection foam and loose mineral wool* to backfill the frames. According to the approval, only the rebate section on the corner frame must be backfilled, while the special 2240B counter skin can be left empty.

The entire system has been tested to EN 1634 and is building code approved as per DIN 4102. It already satisfies the requirements of the future European product standard EN 16034.

* Bulk density min. 40 kg/m³, melting point > 1,000 °C, building material class A1, DIN 4102-1 / DIN 4102-4

Frame backfilling solutions

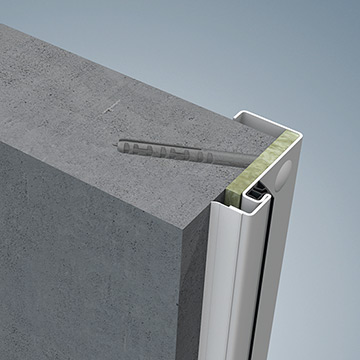

Backfilling frames with conventional mineral wool

Mineral fibre insulating material, bulk density 40 kg/m³, melting point > 1,000°C, building material class A1 / Euroclass A1
Tested to EN 1634-1 and building code approved as per DIN 4102
It is inexpensive and user friendly thanks to being easy to transport, and quick to assemble, with clean and fast application It saves time since only the rebate section at the front of the 2240B frame has to be backfilled with mineral wool while the back can be left empty

Backfilled with fire protection foam

Tested to EN 1634-1 and building code approved as per DIN 4102
Only use Novoferm 1C fire protection pistol foam (no other over-the-counter foams may be used!) Considerably reduces noise emission when closing the doors
It is inexpensive and user friendly thanks to being easy to transport, and quick to assemble, with clean and fast application
It saves time since only the rebate section at the front of the 2240B frame has to be backfilled with fire protection foam while the back can be left empty (Protruding foam is covered by the back section and therefore does not need to be cut off or removed.)

Also approved without backfilling for T30

A frame with T30 approval without any backfilling at all?
And installed in a plasterboard partition wall to boot? You may have thought that was not possible.
But it is – with the new 2240B two-part wrap-around frame. It enables even faster frame installation!

All Planos are standard supplied with 3-D hinges. Technical constraints require larger hinge pockets in the frame than are needed for standard hinges. The space needed to accommodate these hinge pockets is usually created by cutting notches in the UA profile. However, every notch weakens the stability of the wall, which the fitter than has to reinforce with additional components.

A Plano is installed in steel partition walls (min. F60-A) by including double cladding in the reveal. As a result there is no need to notch out the UA profile to house the 3-D hinge pockets; only simple cutouts need to be made in the strips of fireproof gypsum board.

But Plano offers more than that: If the drywall opening has been built exactly to the coordinating size of the door, the frame does not have to be backfilled.

No mandatory backfilling and simple installation using sliding anchors from Novoferm: You can’t perform clean installations any faster than that!

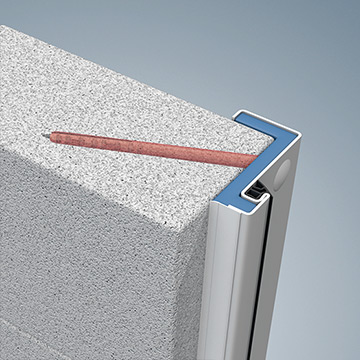

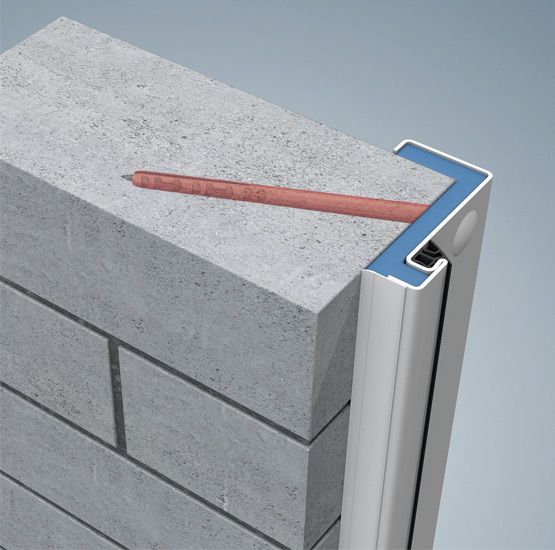

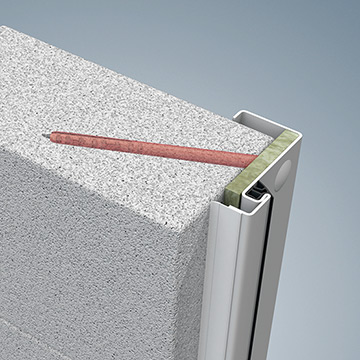

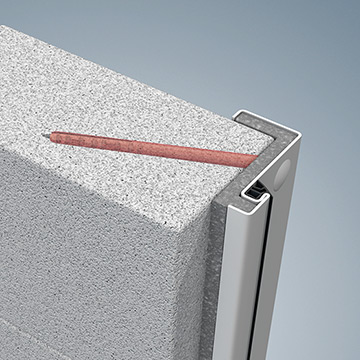

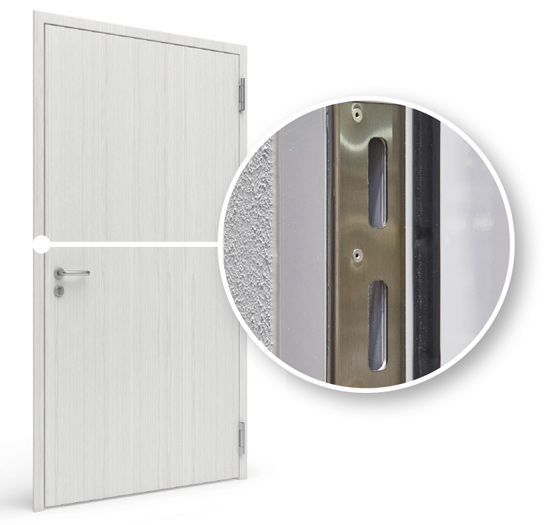

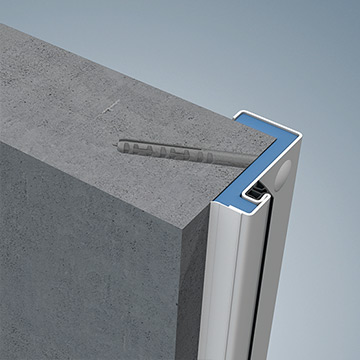

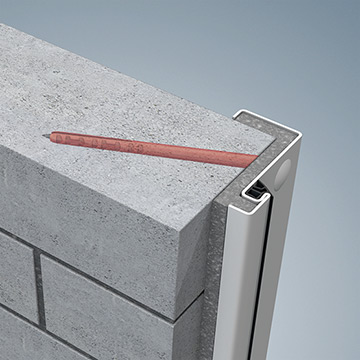

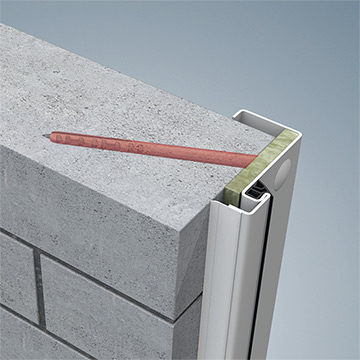

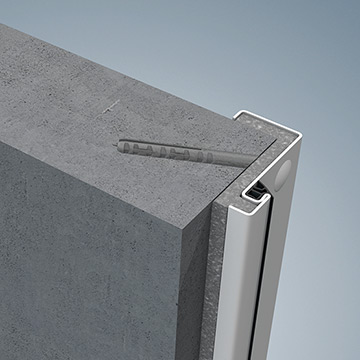

Rebate bolt mounting

Plano makes installation easy – with just one screw per fastening point

The rebate bolt mounting method developed by Novoferm is the quick and clean way to install frames.
What makes it so clever is that you only need one screw per fastening point to assure maximum stability. Which means faster installation. And as the holes are hidden in the frame rebate, they don’t detract from the door’s appearance.

The flush closing NovoPorta Plano is standard supplied with corner frame without floor recess. As such, it offers all the options for efficient rebate bolt mounting to walls made of fair faced masonry, concrete and even foam mortar (only approved for Plano).

If Novoferm fire protection foam, loose mineral wool* or conventional mortar is used for backfilling, the procedure is building code approved for T30, smoke protection and multipurpose doors.

So Plano not only looks good; it is also really flexible.

Rebate bolt mounting is so easy
Just one screw per fastening point offers so many options.

Suitable for use on various types of wall

Backfilling can be chosen as preferred, regardless of the type of wall. Novoferm fire protection foam (blue), loose mineral wool* (yellow) and mortar (grey) are all building code approved. * Bulk density min. 40 kg/m³, melting point > 1,000 °C, building material class A1, DIN 4102-1 / DIN 4102-4

Technology

Technical data at a glance

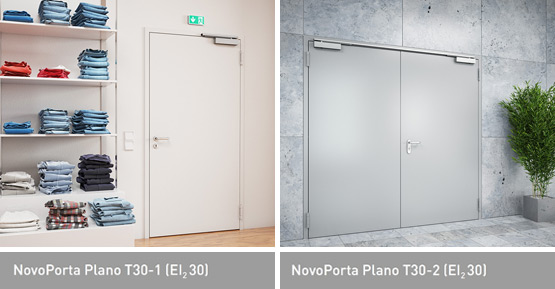

NovoPorta Plano T30 / EI2 30 fire resistant door


Resistance class / Type Designation		NovoPorta Plano T30-1 (EI₂ 30) 1 leaf	NovoPorta Plano T30-2 (EI₂ 30) 2 leaf
Approved dimensions
Coordinating size (BRM)	Width min. – max.	625 – 1250	1375 – 2500
Coordinating size (BRM)	Height min. – max.	1750 – 2500	1750 – 2500
with top panel	Max. height	–	–
of which: door	Max. height	–	–
Smokeproof door with top panel	Max. BRM	–	–

Door panel
Leaf thickness, approx.		64	64
Sheet thickness, approx.		1.0	1.0
Active leaf	Width min. – max.	–	834 – 1228
Inactive leaf	Width min. – max.	–	525 – 1228
Type of opening	as per DIN	Left or right	Active leaf on left or right

Walls
Masonry		> 115	> 115
Concrete		≥ 100	≥ 100
Foam mortar block / Precision blocks		≥ 150	≥ 150
Reinforced foam mortar wall boards		≥ 150	≥ 150
F60-A and F90-A walls made of fire resistant gypsum plasterboard (as per DIN 4102, Part 4, Table 48)		≥ 100	≥ 100
F60-B and F90-B walls made of fire resistant gypsum plasterboard (as per DIN 4102, Part 4, Table 49)		≥ 130	≥ 130
Other approved installation walls, min. F60-A/F60-B as per general building code test certifiapproxte, on request		•	•
Cladded steel supports/beams, min. F60-A, or cladded timber supports/beams, min. F60-B as per DIN 4102-4		•	•

Versions
Fire retardant – tested to EN 1634-1 and approved as per DIN 4102		•	•
Fire resistant glazing ¹)		•	•
Optional smoke protection		•	•
Optional soundproofing (with lowerable floor seal, without glazing, Lab measurement as per EN ISO 717-1)		approx. 35 dB Rw,P	undergoing testing
Optional burglar resistance as per EN 1627 (full leaf, tested on both sides)		RC2 ²)	RC2 ²)
Also with Novoferm design finish	Max. BRM	1250 x 2350	2500 x 2350

F30 glazing
Rectangular standard-compliant glazing with visibly bolted glass retaining strips, standard galvanized and primed with powder coating (RAL 9016), optionally available with additional cover profiles (without visible fastening) in stainless steel. Minimum frieze widths on 3 sides ≥ 150 mm, on the lock side and on the centre rebate of the inactive leaf ≥ 180 mm.		•	•
Round standard-compliant glazing Glass retaining strips and minimum frieze widths/frieze widths as for rectangular standard-compliant glazing.		•	•
Special glazing, optional, from 150 x 150 mm to 849 x 2134 mm. Glass retaining strips and minimum frieze widths/frieze widths as for rectangular standard-compliant glazing.		•	•

Approval number		Z-6.20-2262	Z-6.20-2262

• possible – not possible

¹) Glass for indoor use only (protect against UV light and direct halogen radiation).
Glass can only be used within a temperature range of –20 to +45°C.

Sketches only apply for door size 1000 x 2000 mm / All glazing dimensions refer to the clear look-through per glass.

²) undergoing testing

All sizes in mm. BRM = coordinating size RAM = outer frame dimensions LD = clear passage dimensions

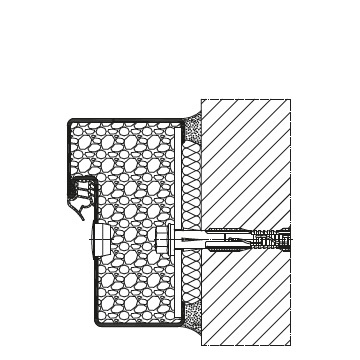

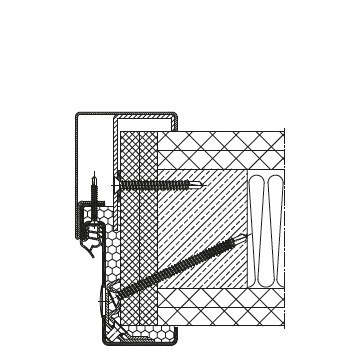

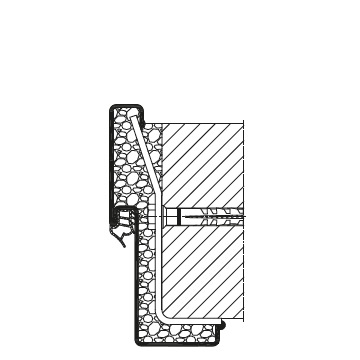

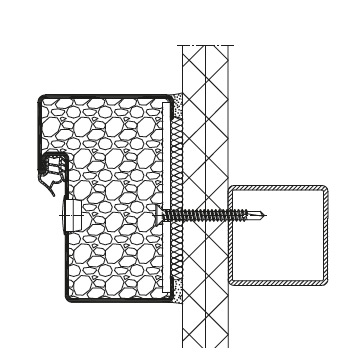

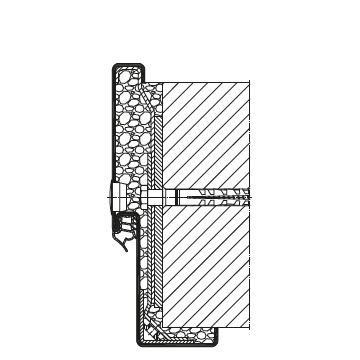

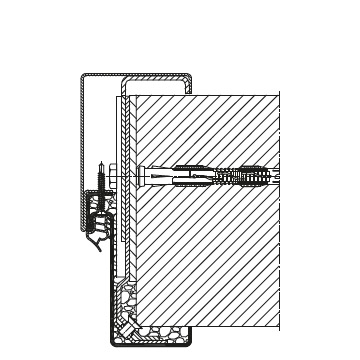

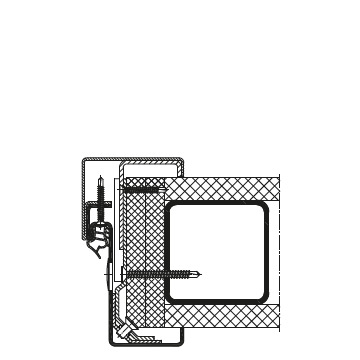

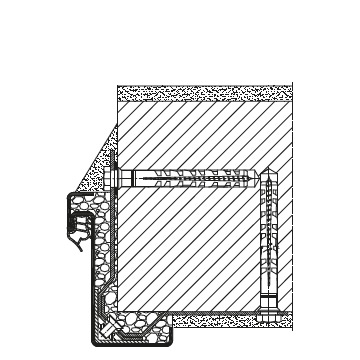

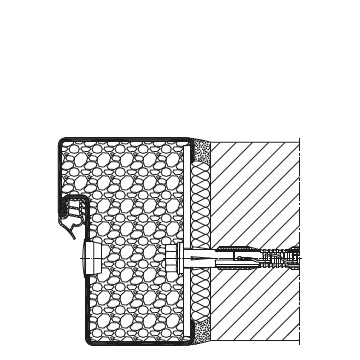

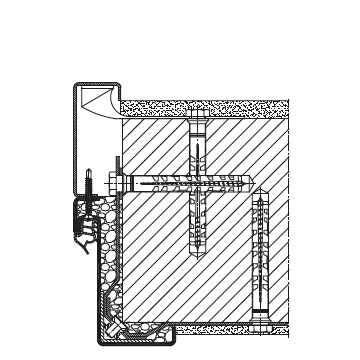

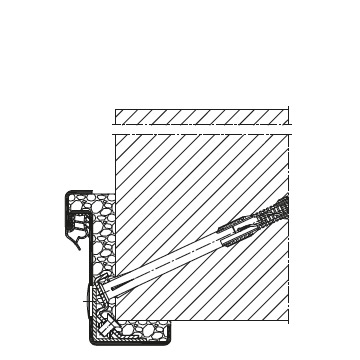

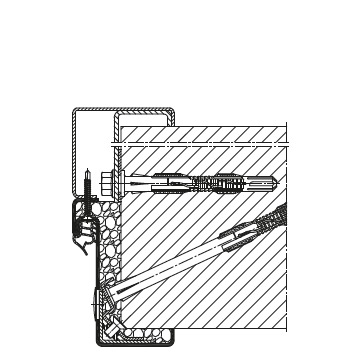

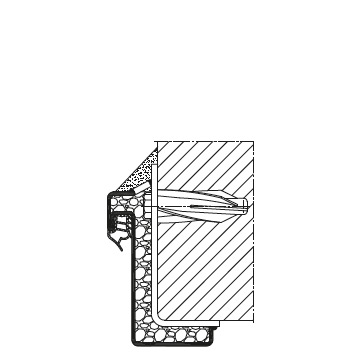

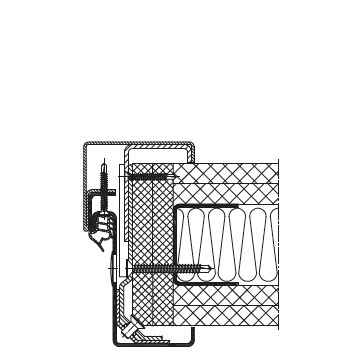

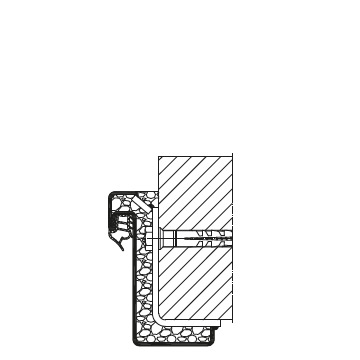

Wall connections

Overview of selected wall connections
